- RS品番:
- 185-479
- メーカー型番:
- CEPY1-1001
- メーカー/ブランド名:
- ABB
17 海外在庫あり - 通常4営業日でお届け
46 海外在庫あり - 通常5営業日でお届け
追加されました
単価: 購入単位は 個
¥5,956.00
(税抜)
¥6,551.60
(税込)
個 | 単価 |
1 + | ¥5,956.00 |
- RS品番:
- 185-479
- メーカー型番:
- CEPY1-1001
- メーカー/ブランド名:
- ABB
その他
- COO(原産国):
- CN
詳細情報

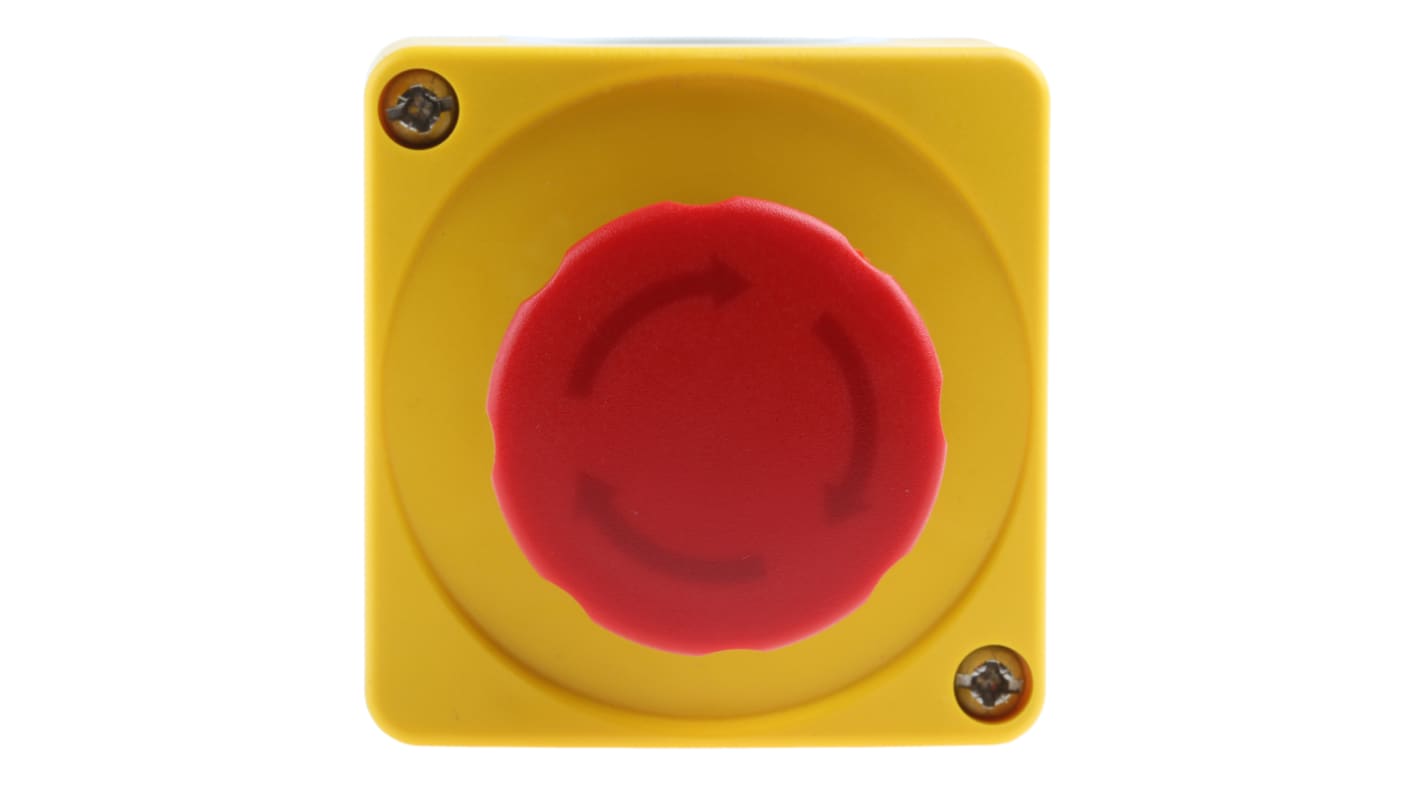

ABB Emergency Stop Push Button, Red/Yellow Colours, 2NC Contacts - 1SFA Series - CEPY1-1001
Are you looking for a reliable fail-safe control switch to protect your system from potentially dangerous situations? Opt for this emergency stop push button from ABB. Its a surface-mounted device with 2NC contacts, so when it's pressed, the connected circuit is broken and your equipment stops working. The flat head stands out clearly in red against yellow housing and is easy to hit with the palm of your hand. This unit uses a 1A current, which ensures low heat dissipation for efficient energy use. It has an operating temperature range between -25°C and +70°C, making it suitable for use in harsh conditions.
Features & Benefits
• Dimensions of 101 (height) x 74.4 (width) x 60.5mm (depth) for installation in small spaces
• Operating voltage range between 24 and 300V AC makes it suitable for use in light-duty to medium-duty applications
• Knockout holes at the side for easy wiring
• Operating voltage range between 24 and 300V AC makes it suitable for use in light-duty to medium-duty applications
• Knockout holes at the side for easy wiring
Applications
• Rail and transportation industry
• Food and beverage production
• Automotive workshops
• Food and beverage production
• Automotive workshops
How do I reset this device?
When it's safe to start working again, deactivate the button by twisting it to the right, according to the arrows.
ABB 22.5 mm、コンパクト製品
ニーズを満たすために信頼性とコスト効果の高いソリューションを望むユーザ向けの包括的なコンポーネント製品です。
仕様
特性 | |
---|---|
実装タイプ | 表面実装 |
接点構成 | 2NC |
押しボタンの作動 | ツイストリリース |
イルミネーション | なし |
シリーズ | 1SFA |
IP保護等級 | IP66, IP67, IP69K |
色 | 赤 |
プッシュボタンの形 | マッシュルーム |
定格電圧 | 125 V dc, 240V ac |
深さ | 65mm |
補助接点 | 2NC |
幅 | 65mm |
高さ | 79mm |
押しボタンの素材 | プラスチック |
回路 | 双極単投 |
ベゼル材 | プラスチック |
本体色 | 黄 |
