- RS品番:
- 720-4280
- メーカー型番:
- 40A1X10FT
- メーカー/ブランド名:
- Renold
2 海外在庫あり - 通常4営業日でお届け
追加されました
単価: 購入単位は 個
¥16,422.00
(税抜)
¥18,064.20
(税込)
個 | 単価 |
1 - 5 | ¥16,422.00 |
6 + | ¥16,020.00 |
- RS品番:
- 720-4280
- メーカー型番:
- 40A1X10FT
- メーカー/ブランド名:
- Renold
その他
RoHSステータス: 該当なし
詳細情報

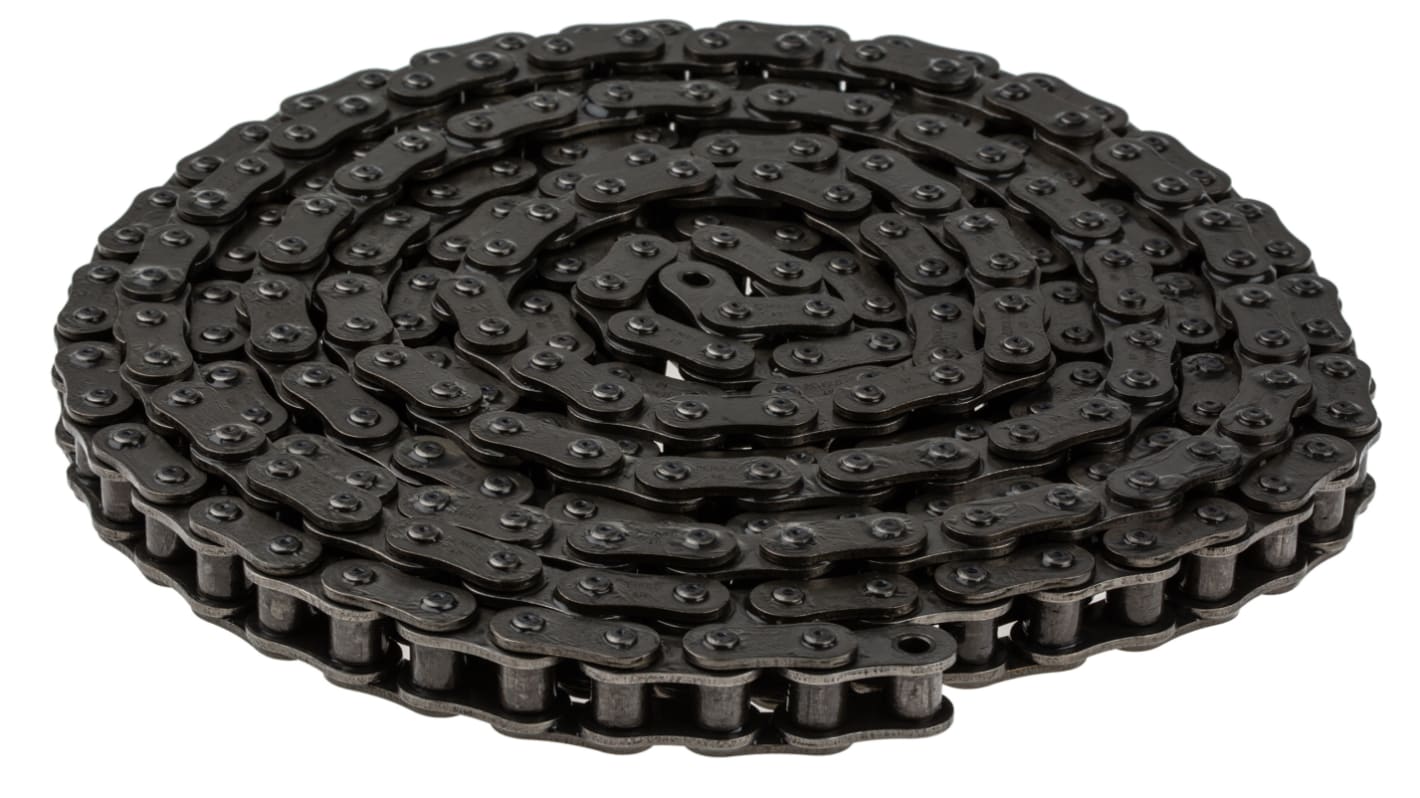

単列チェーン
Chain Standards
American standard chains are covered by DIN 8188, ANSI B29.1 and ISO 606. There are 8 versions:
Simplex
Duplex
Triplex
Quadruplex
Quintuplex
Sextuplex
Octuplex
Decuplex
Often referred to as ANSI standard, pitch size varies between inch to 3 inches, with the chain links having a smaller pin diameter. They are less wear resistant than European Standard chains except for the 5/8 inch which is larger.
The ANSI standard has a simple numbering system:
The first number is the pitch size in 1/8 inch, for example 4/8 =
The second number refers to a roller chain = 0, or a bush chain = 5
The suffix indicates the number of strands in a chain
仕様
特性 | |
---|---|
チェーンタイプ | 40-1 |
ピッチ | 12.7mm |
ストランドの数 | シンプレックス |
材料 | スチール |
チェーンシリーズ | Renold (Blue Box) |
長さ | 3m |
プレート高さ | 11.2mm |
ローラー直径 | 7.92mm |
チェーン幅 | 7.85mm |
全幅 | 16.4mm |
スタンダード | アメリカ |
重さ | 0.6kg/m |
