Siemens DINレール取付け用スイッチング電源, 6EP1436-2BA10, 出力：20A, 定格：480W 入力電圧：ac 出力電圧：dc 24V dc/
- RS品番:
- 714-1271
- メーカー型番:
- 6EP1436-2BA10
- メーカー/ブランド名:
- Siemens
DINレール取付けスイッチング電源 の一覧へ
一時的な在庫切れ - 2024/01/18に入荷し、その後1営業日でお届け予定
単価： 購入単位は 個
￥77,030.00
(税抜)
￥84,733.00
(税込)
| 個 | 単価 |
| 1 + | ￥77,030.00 |
- RS品番:
- 714-1271
- メーカー型番:
- 6EP1436-2BA10
- メーカー/ブランド名:
- Siemens
- COO（原産国）:
- AT
その他
- COO（原産国）:
- AT
詳細情報

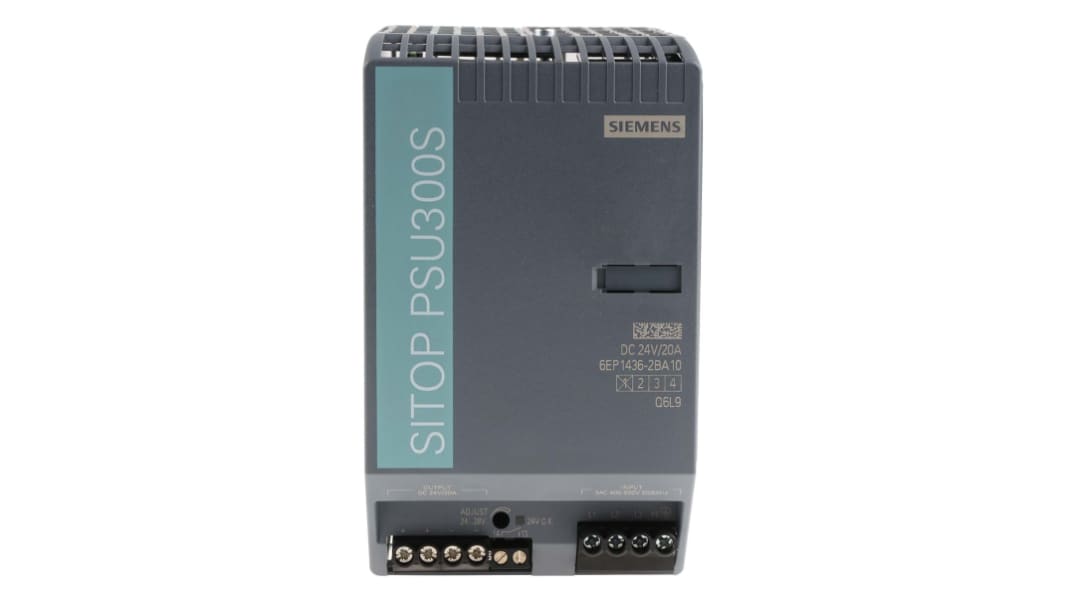

Siemens DIN Rail Power Supply, Switch Mode, 340 to 550V AC Input - SITOP PSU300S Series - 6EP1436-2BA10
Looking for an efficient and compact power supply for machinery and plant engineering? This 3-phase switch mode unit from Siemens' SITOP range delivers excellent overload response from small dimensions of 90 (W) x 150 (D) x 145mm (H). It clips easily onto a DIN rail to help you build a neat and organised system, while up to 91.5% efficiency means it generates minimal heat inside the cabinet. For reliability, the device can handle 1.5 times the rated current during a brief functional overload.
• Operating temperature range of 0°C to +70°C for use in harsh industrial environments
• Safe to use in the presence of flammable gases or combustible dust
• Ripple and noise of 150 mV Pk-Pk for low energy wastage
• Adjustable output voltage between 24 and 28V lets you compensate for voltage drops
• Signalling contact offers easy integration into a plant monitoring system
• Safe to use in the presence of flammable gases or combustible dust
• Ripple and noise of 150 mV Pk-Pk for low energy wastage
• Adjustable output voltage between 24 and 28V lets you compensate for voltage drops
• Signalling contact offers easy integration into a plant monitoring system
How does a switch mode power supply work?
A switch mode power supply uses switching devices to continually turn on and off at high frequency, which is more efficient than a linear power supply.
仕様
| 特性 | Value |
| 出力電圧 | 24V dc |
| 出力電流 | 20A |
| AC又はDC入力電圧 | ac |
| AC又はDC出力電圧 | dc |
| 入力電圧 | 340 → 550V ac |
| 定格電力 | 480W |
| 電気的位相 | 3 |
| 出力数 | 1 |
| 実装タイプ | DINレールマウント |
| タイプ | モード切替 |
| 幅 | 90mm |
| 高さ | 145mm |
| シリーズ | SITOP PSU300S |
| 奥行き | 150mm |
| ロードレギュレーション | 1% |
| MTBF平均故障間隔 | 500000h |
| リップルノイズ | 150mV Pk-Pk |
| 効率 | 91% |
| 最低温度 | -25°C |
| 出力電圧調整範囲 | 24 → 28V |
| 最高温度 | +60°C |
| 代表規格 | cCSAus (CSA C22.2 No. 60950-1, UL 60950-1), CE Certified, cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259, EN 55022 Class B, EN 61000-3-2, EN 61000-6-2 |
| 危険区域認証 | ATEX |
