Norgren 手動バルブ プランジャー ポート数：5 G 1/8 X3044002

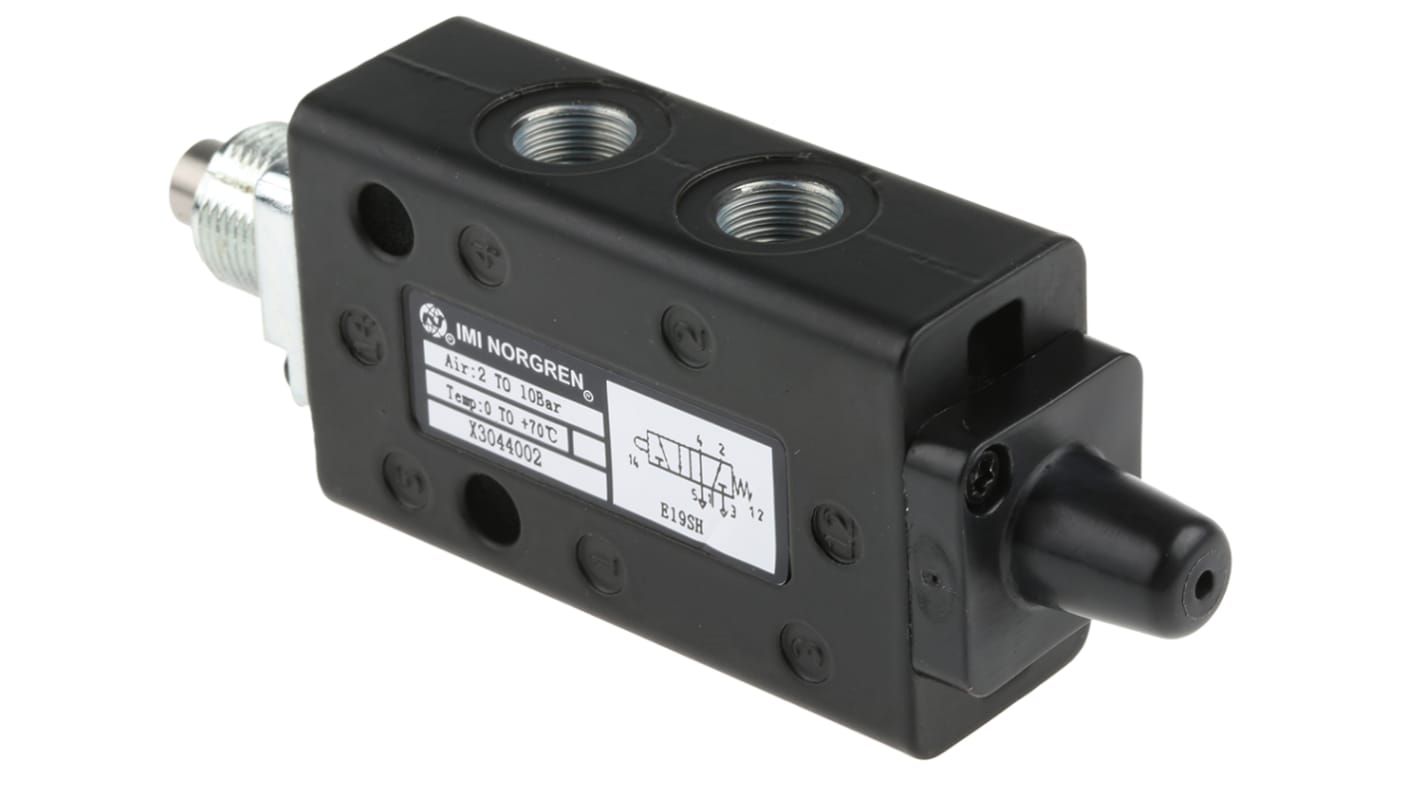

Control the direction and pressure of airflow in your equipment with this pneumatic manual control valve from IMI Norgren. Its 5/2-way design means it supports double-acting cylinders used in applications where you need to control flow in two directions. The valve is easy to install thanks to its standard G1/8 threaded connection. As it has a wide operating pressure range of -0.9 to 10 bar, it's suitable for use in both low-pressure and high-pressure applications.

• Broad operating temperature range between 0°C and +70°C for use in demanding environments
• Through-holes in the valve body make it easy to mount
• Nominal flow rate of 335L/min for use in heavy-duty applications
• Compatible with filtered, lubricated and non-lubricated compressed air for versatility

• Automation facilities
• Manufacturing industry
• Automotive plants
• Construction projects

Simply press down on the plunger to open the valve and release when you want to close it. The spring return actuator will automatically turn off the airflow for safety.
