TDKラムダ スイッチング電源 5 V dc, ±12 V dc, ±24 V dc 1 A, 5 A, 7.5 A, 8 A 180W NV1-4G5TT

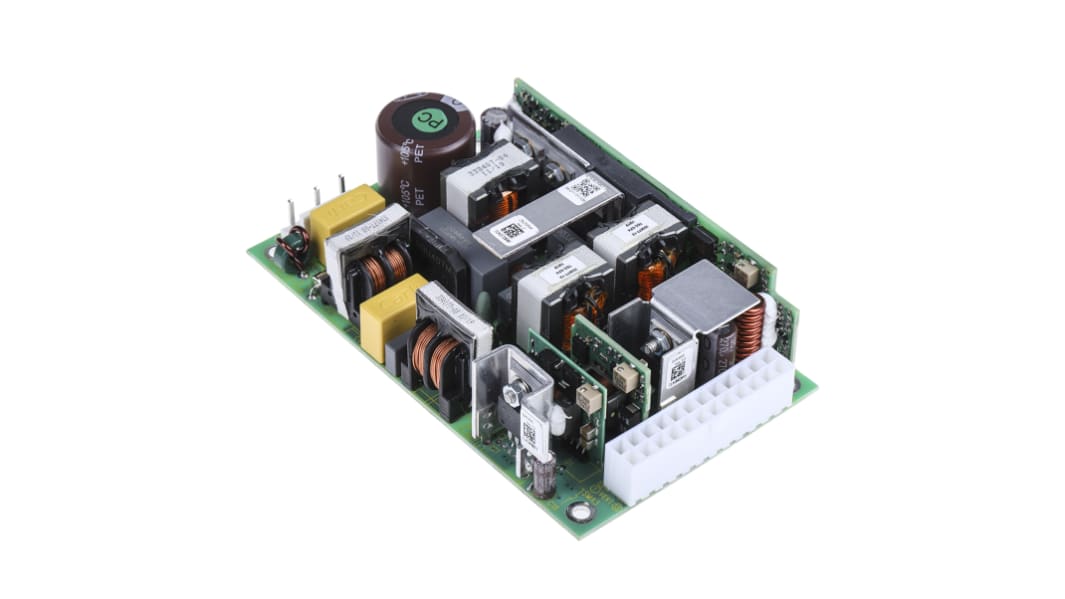

The TDK-Lambda 180W quad output AC to DC embedded switch-mode power supply has an output current rating of 7.5A at 24VDC, 8A at 5VDC, 5A at 12VDC and 1A at -12VDC. It has a universal input supply voltage rating from 90VAC to 264VAC.
Note:
Output current is with 2m/s airflow. De-rate above 50°C to 70°C each output by 2.5% per °C. Ripple and noise (P-P maximum) are 50mV or 1% if greater.

Adjustable output voltage on outputs 1, 2, and 3
High power density
Low profile, fits 1U applications
Miniature size 3in width and 5in height
No minimum load
Over voltage and over temperature protection
Remote sense on outputs 1 and 2
Short circuit protection
Up to 90% efficiency

CSA 22.2 No. 60950
CSA approved
EN 55022-B (as per CISPR.22)
EN 60601-1
EN 60950-1
EN 61000-3-2 (power factor correction)
IEC 60601-1
IEC 60950-1
UL 60950-1
UL approved

UL recognised component for US, CSA
