- RS品番:
- 228-841
- メーカー型番:
- LT4H-AC240VS
- メーカー/ブランド名:
- Panasonic
この製品はご注文いただけません
大変申し訳ありませんが、在庫切れのため現在ご注文いただけません。
追加されました
単価: 購入単位は 個
¥15,965.00
(税抜)
¥17,561.50
(税込)
個 | 単価 |
1 - 4 | ¥15,965.00 |
5 - 9 | ¥15,486.00 |
10 + | ¥15,021.00 |
- RS品番:
- 228-841
- メーカー型番:
- LT4H-AC240VS
- メーカー/ブランド名:
- Panasonic
その他
- COO(原産国):
- JP
詳細情報

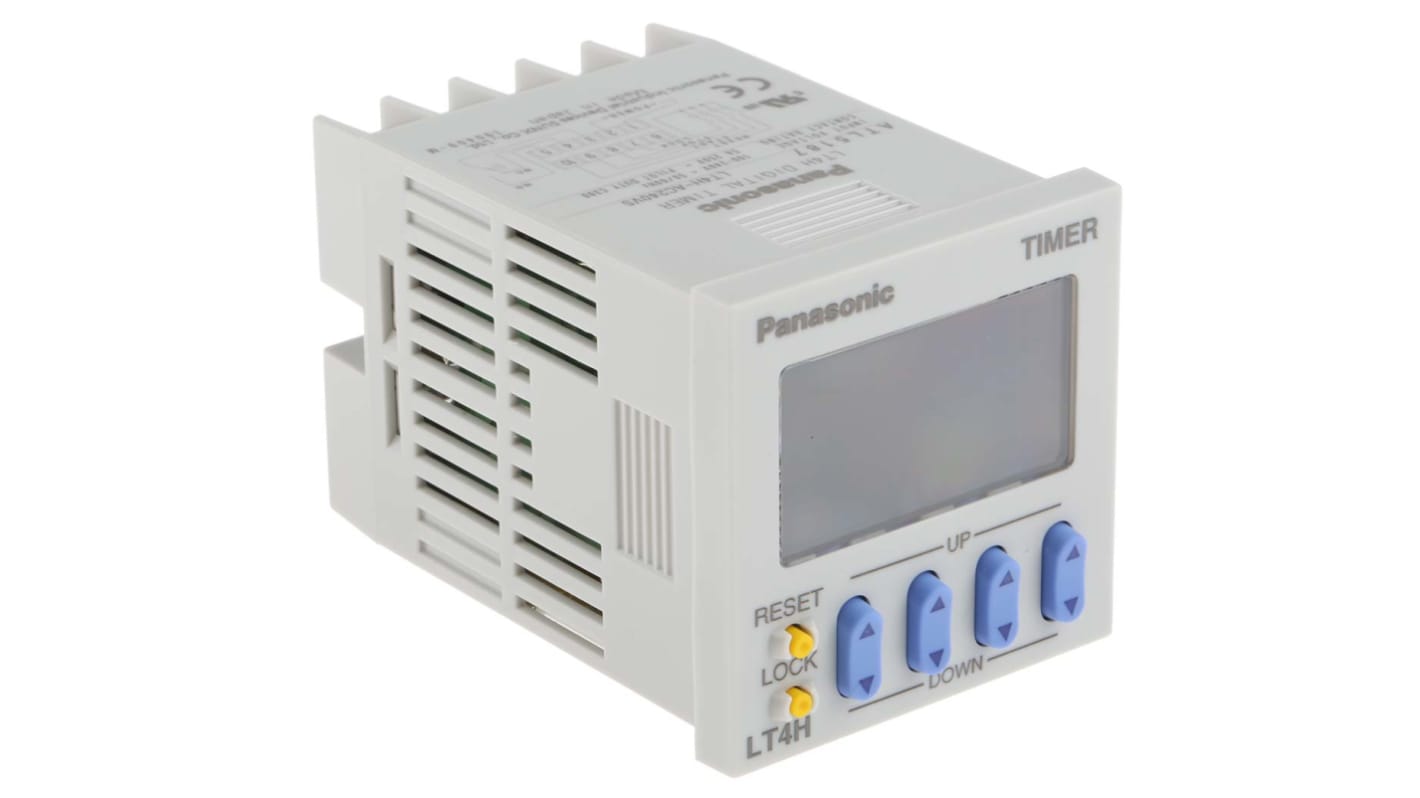

Panasonic Multifunction Timer Relay
The Panasonic multi-function timer rela is solid-state, compact equipment with high precision. It is suitable for controlling the operation of equipment, machinery, systems or processes in a wide range of industrial applications. This timer relay can be installed into the new and existing applications without much hassle. It performs delay functions like power ON delay, pulse ON delay, pulses one-shot, signal flicker, signal OFF delay, signal ON delay, totalizing ON delay in the range of up to 9999hours. Its affordability, optimum space management and high-performance make this relay ideal for a wide range of applications in process control environments.
Features and Benefits
Simple operation
The supply voltage rating ranging between 100VAC and 240VAC
Models with multi-scale timing ranging up to 9999 hours
Backlit LCD
Screw type terminal
Timer is easy to programme and can be integrated easily into standardised sections
Complies with all necessary European standards
Function selection via DIP switch
Good performance
Relay output
The supply voltage rating ranging between 100VAC and 240VAC
Models with multi-scale timing ranging up to 9999 hours
Backlit LCD
Screw type terminal
Timer is easy to programme and can be integrated easily into standardised sections
Complies with all necessary European standards
Function selection via DIP switch
Good performance
Relay output
Applications
Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
IP66 rated
CE certified
EN50081-2
EN50082-2
CE certified
EN50081-2
EN50082-2
仕様
特性 | |
---|---|
電源電圧 | 100 → 240V ac |
取り付けタイプ | パネルマウント |
タイマ機能の数 | 電源オンディレー、 パルスオンディレー、 パルスワンショット、 信号フリッカー、 信号オフディレー 信号オンディレー、 合計オンディレー |
時間範囲 | 0 → 9999 h, 0 → 9999 min, 0 → 9999s |
タイマ機能の数 | 多機能 |
時間増分 | 時間 , 分 , 秒 |
電流 Max | 5A |
最大電圧 | 250V ac |
ターミナルタイプ | ねじ |
電源 | 外部 |
幅 | 48mm |
動作温度 Max | +55°C |
長さ | 48mm |
奥行き | 70mm |
シリーズ | LT4H |
遅延時間 | 20ms |
動作温度 Min | -10°C |
接点材質 | 金めっき |
