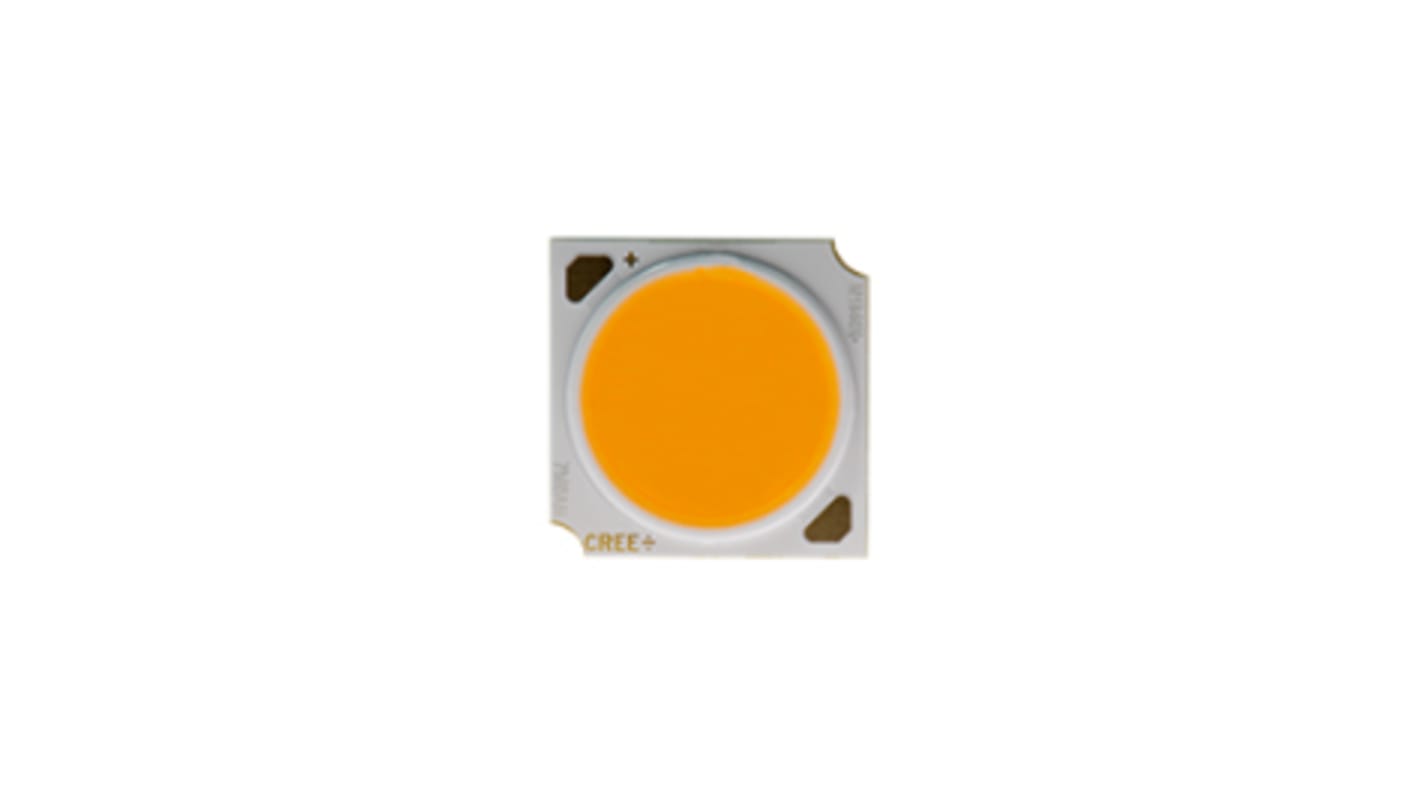

Cree LED COB LED 白 XLamp 4000k, CMA1840-0000-000N0U0A40G 92 %

取扱停止中
この商品はお取扱い終了致しました。
RS品番:
171-2903
メーカー型番:
CMA1840-0000-000N0U0A40G
メーカー/ブランド名:
Cree LED
製品情報(複数選択可)を選択して、類似製品を検索します。
すべて選択

ブランド

Cree LED

標準.輝度フラックス

6114lm

プロダクトタイプ

COB LED

光源径

14mm

最大順方向電流

2.3A

色温度

4000k

放射束

87W

シリーズ

XLamp

視野角度

115 °

演色評価数CRI

92%

LEDのカラー

白

順方向電圧

34.7V

規格 / 承認

UL (E349212), RoHS

自動車規格

なし

The XLamp® CMA1840 is a member of Cree’s XLamp High Current LED Array family that is optimized for best-in-class lumen output, efficacy and reliability at high drive currents. XLamp CMA LEDs share the same package design and LES sizes as Cree’s CXA2 Standard Density LEDs, enabling lighting manufacturers to address a range of performance requirements for applications such as track, downlight and outdoor lighting using a single easy-to-use platform. XLamp High Current LED Arrays are available in 2-step and 3-step EasyWhite® bins.

14-mm optical source

Optical design consistent with

CXA1830 and CXB1830 LeDs

Available in 70-, 80- and 90- and

95-minimum CRI options

Cree easyWhite® 2-, 3- and 5-step binning

Premium Colour 2- and 3-step binning

Forward voltage option: 36-v class

85 °C binning and characterization

Maximum drive current: 2300 mA

115° viewing angle, uniform

chromaticity profile

Top-side solder connections
