Finder インターフェイスリレー 24V ac/dc 38 Series 250 → 400V

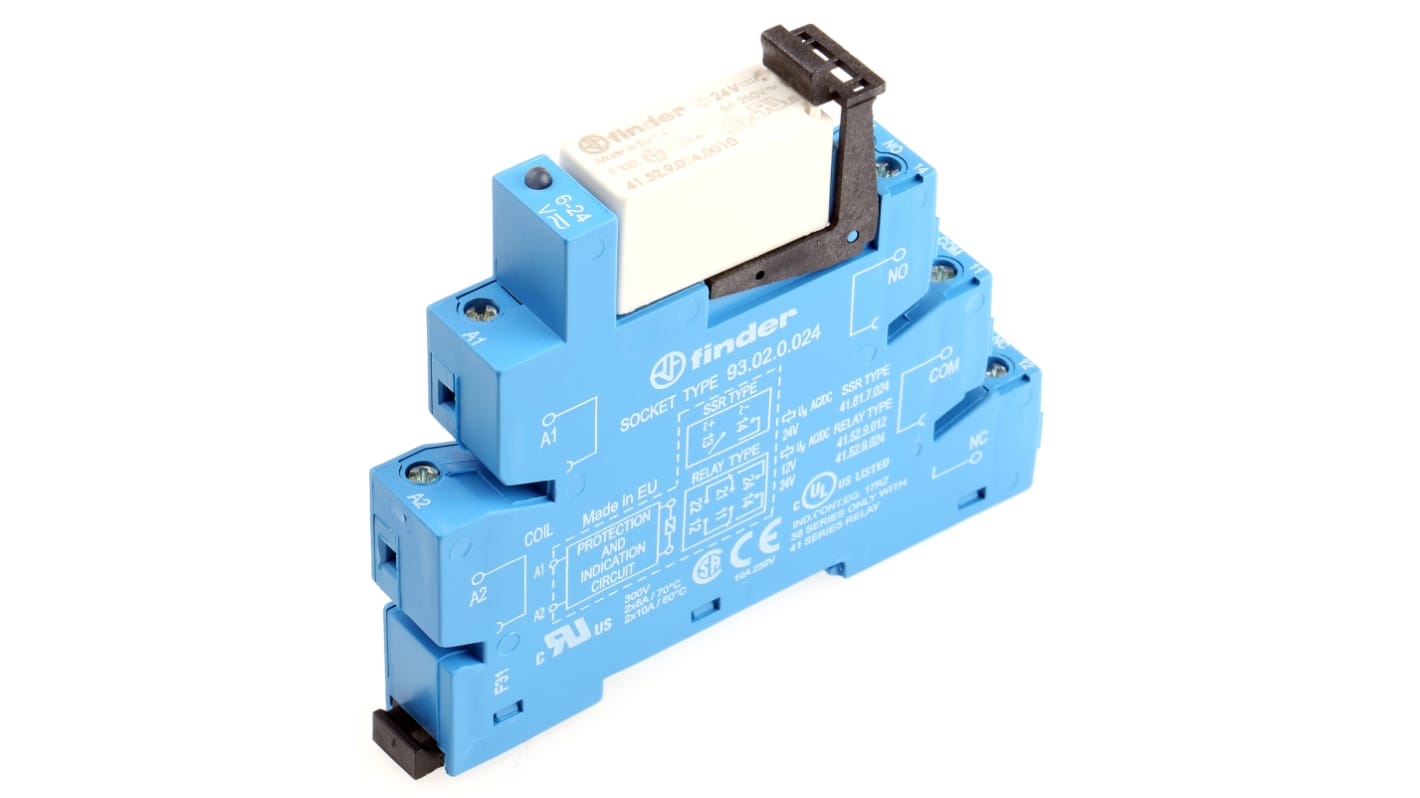

The Finder interface relay module is an innovative, ultra-compact electromechanical device equipped with a 24VAC/DC coil and a DPDT 2 C/O contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC. The high number of approvals make it useful for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus, optimising your panel installation. This solid-state relay module has a small footprint that makes it ideal for applications where space-saving is essential.

The contact rated voltage is 250VAC and switching current of 8A
The input and output circuits and the voltage supply are completely electrically isolated
Instant ejection of relay by plastic retaining clip
Integral coil indication and protection circuit
Operating temperature ranges from -40°C to 70°C
AgNi contact with optionally hard gold-plating available
Screw type terminal connection
DIN rail type mounting

Packaging machines
Traffic light controls
Vending machines
Programmable controllers
Control panels for electrical distribution
Labelling machine
Bottling plants
Industrial process control
Motor control applications
Electrical isolation
Signal matching between electronic controls

IP20 rated
CE certified
CSA certified
EAC certified
cRUus certified
