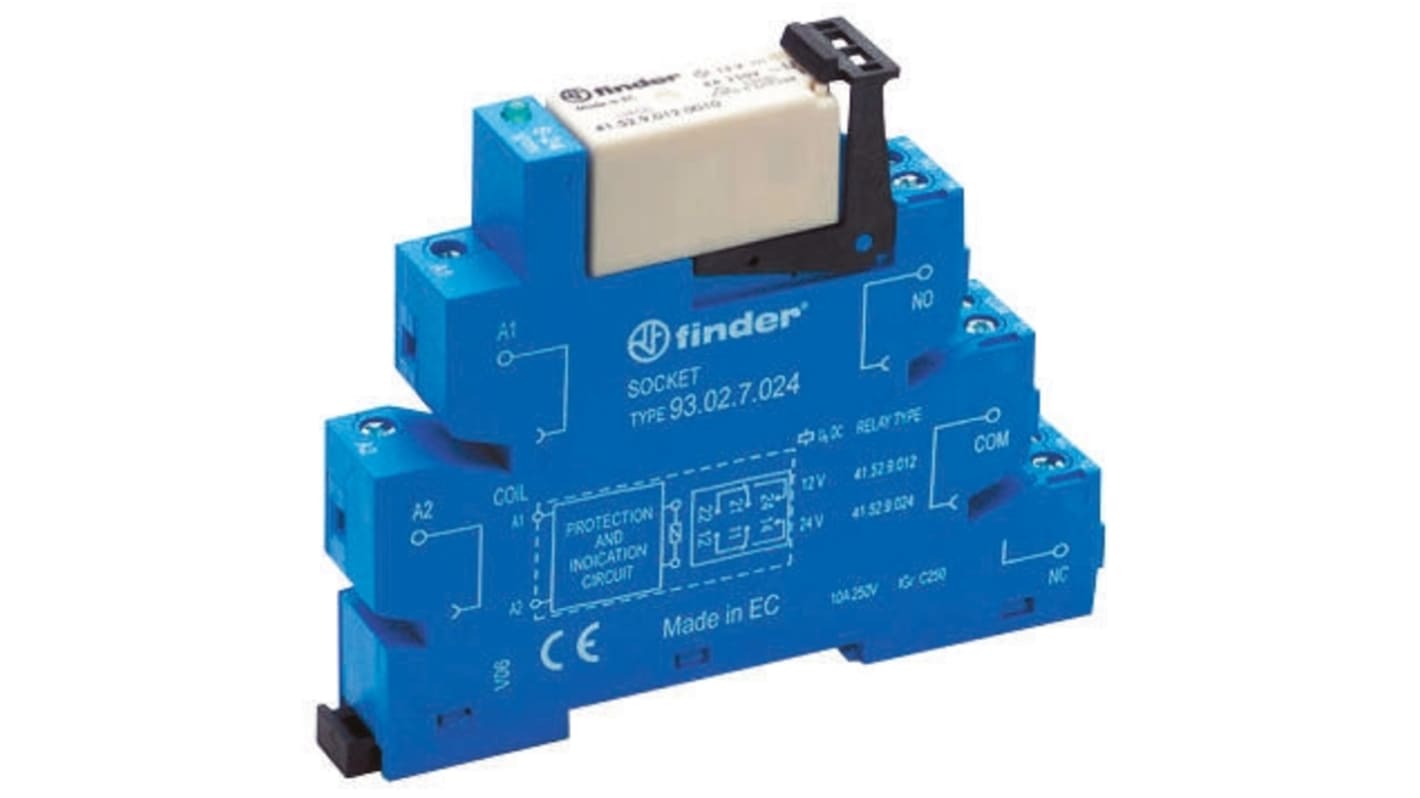

Finder 38 Series インターフェイスリレーモジュール, 12V ac/dcコイル, DPDT, 8/15A 250 → 400V

This interface relay module is an essential device for managing electrical control systems. Designed as a DPDT relay with a coil voltage of 12V AC/DC, it operates efficiently on a DIN Rail, accommodating two poles. Measuring 89.7mm in height, 14mm in length, and 77.1mm in depth, this compact relay is engineered to ensure seamless integration into various automation frameworks.

• Instant relay ejection via a plastic retaining clip enhances service efficiency
• Integral coil indication and protection circuit increase operational reliability
• Suitable for high voltage switching up to 400V, ensuring versatility
• Load current ratings of 8/15A support various industrial applications
• Screw terminal type simplifies wiring for swift installation
• Operating temperature range from -40°C to +70°C enables performance in diverse environments

• Utilised in traffic light controls for precise signal management
• Employed in vending machines for reliable product dispensing
• Applied in packaging machines to control automated processes
• Common in programmable controllers for flexible control systems
• Integrated within control panels for system monitoring and operation

The coil indication ensures users can monitor the relay's status, detecting malfunctions or failures quickly, which helps to minimise downtime in critical applications.

The relay module can handle load current ratings of 8A at 250V and 15A at 400V, making it suitable for various industrial applications requiring high current handling.

It is designed for DIN Rail mounting, complying with EN 60715 standards, allowing easy integration into standard electrical distribution systems.

Yes, it can function effectively in an ambient temperature range of -40°C to +70°C, ensuring reliability in harsh environments.

The relay features a turn-on time of 8ms and a turn-off time of 10ms, ensuring rapid response in automated systems.
