Rose, ガラス繊維強化ポリエステル, 高さ:91 mm, 奥行き:360 mm 02363609
- RS品番:
- 229-0889
- メーカー型番:
- 02363609
- メーカー/ブランド名:
- Rose
12 海外在庫あり - 通常4営業日でお届け
単価: 購入単位は 個
¥36,866.00
(税抜)
¥40,552.60
(税込)
個 | 単価 |
---|---|
1 + | ¥36,866.00 |
- RS品番:
- 229-0889
- メーカー型番:
- 02363609
- メーカー/ブランド名:
- Rose
その他
- COO(原産国):
- DE
詳細情報

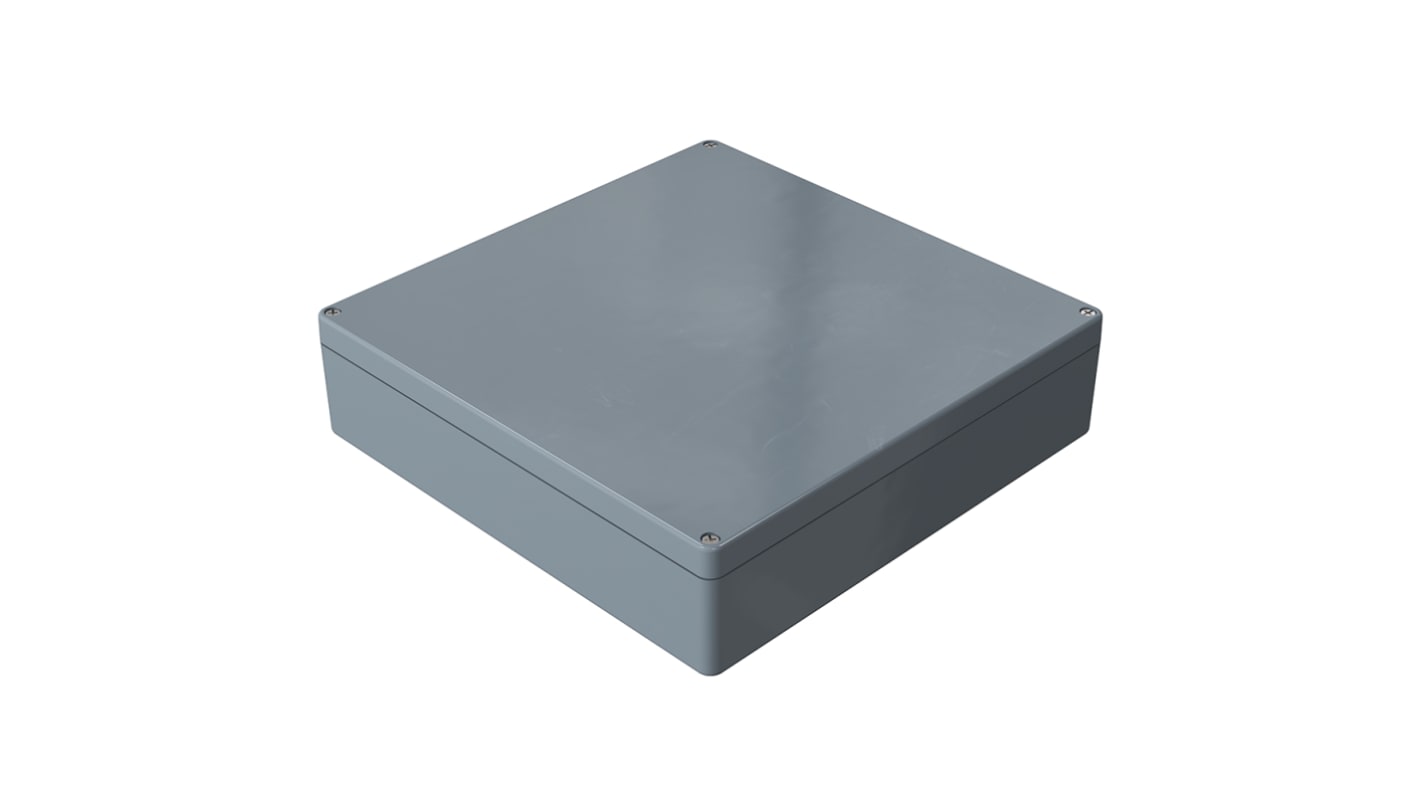

ROSE Glass Fibre-Reinforced Polyester Enclosure, 360mm Width, 91mm Depth - Polyester Standard Series - 02363609
Use this robust enclosure from ROSE to shield your electrical components from tampering, dust and moisture. Its glass fibre-reinforced polyester body is highly durable and can withstand up to 7 joules of mechanical impact, so it's a practical choice for use in heavy-duty industrial environments. The enclosure weighs just 4.11kg, so it's easy to handle and won't place too much strain on your equipment. As it has a wide operating temperature range of -40°C to +100°C, you can use this unit in both cold and hot environments.
Features & Benefits
• IP66 (ingress protection) rating for protection against dust and high-pressure water jets
• Can be mounted on a DIN rail or mounting plate for versatile installation
• Comes with captive screws to secure lid and prevent unauthorised access
• Fully insulated to protect against electric shock
• Can be mounted on a DIN rail or mounting plate for versatile installation
• Comes with captive screws to secure lid and prevent unauthorised access
• Fully insulated to protect against electric shock
Applications
• Chemical production industry
• Mechanical engineering workshops
• Installation terminals
• Mechanical engineering workshops
• Installation terminals
Is this enclosure fire-safe?
This enclosure's glass fibre-reinforced polyester material is flame-retardant to prevent the spread of flames in the event of a fire. It's also halogen-free, so it won't emit toxic fumes if a fire occurs.
仕様
特性 | |
---|---|
材質 | ガラス繊維強化ポリエステル |
奥行き | 360 mm |
高さ | 91 mm |
幅 | 360 mm |
外形寸法 | 360 x 360 x 91mm |
範囲 | Glass fibre reinfored Polyeser Enclosure |
IP保護等級 | IP66 |
色 | グレー |
蓋色 | グレー |
フランジ | なし |
シールド | なし |
危険区域認証 | ロイド船級協会規格, ロシア船級協会規格, UL508 |
シリーズ | Polyester Standard |
ノックアウトの数 | 0 |
重量 | 3700g |
IK等級 | IK08 |
透明ドア | なし |
ガスケット材質 | クロロプレン |
RALコード | RAL 7000 |
