Intelligent LED Solutions 円形LEDアレイ, ILH-OW09-FRED-SC211-WIR200.

LEDアレイ の一覧へ
取扱終了
在庫限りでお取扱いは終了致します。
RS品番:
879-3791
メーカー型番:
ILH-OW09-FRED-SC211-WIR200.
メーカー/ブランド名:
Intelligent LED Solutions
製品情報（複数選択可）を選択して、類似製品を検索します。
すべて選択

ブランド

Intelligent LED Solutions

プロダクトタイプ

円形LEDアレイ

COO（原産国）:
GB

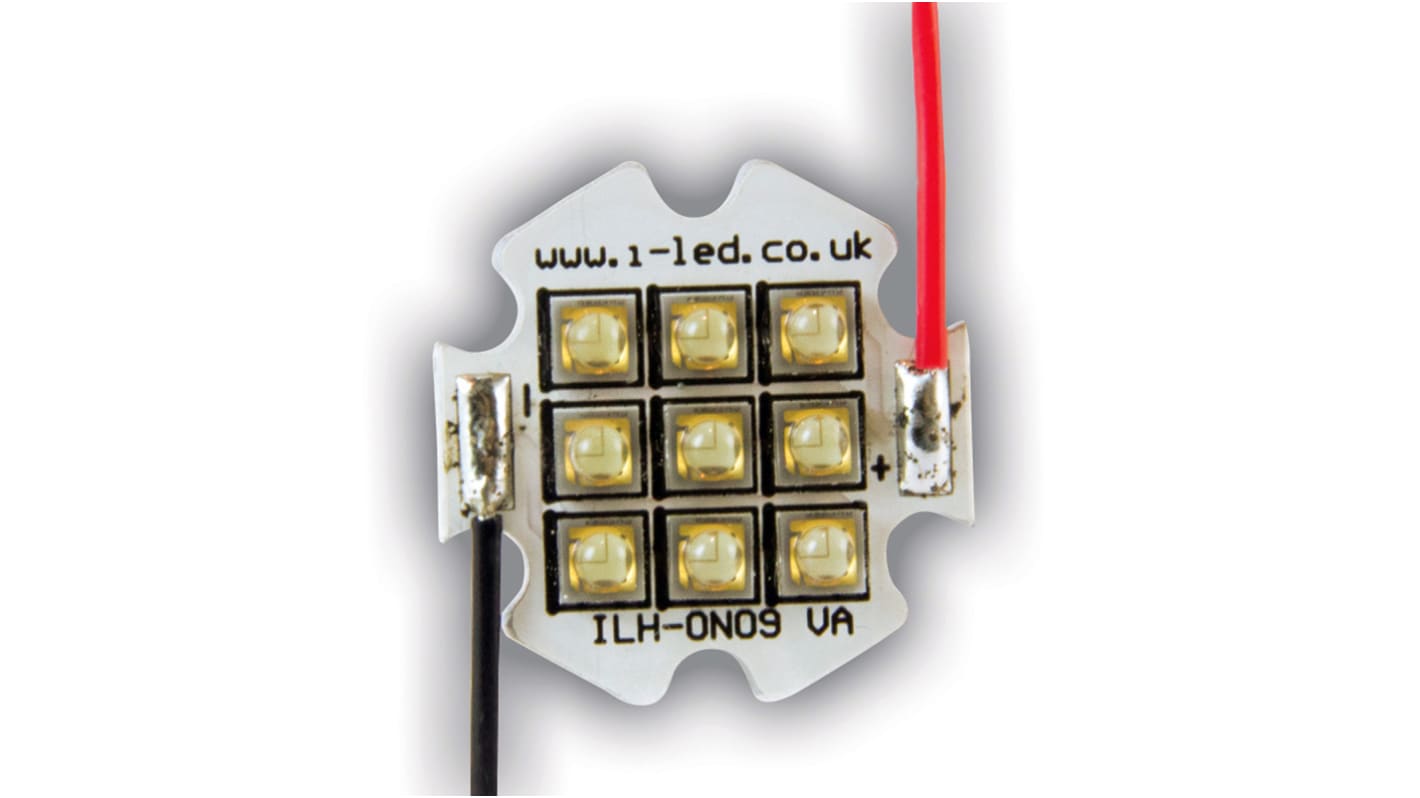

OSLON SSL 150 9+ PowerStar LED Arrays


The Oslon 150 9+ PowerStar series of LED arrays, from Intelligent LED Solutions, feature 9 Osram Oslon SSL 150 ThinGan (UX:3) LEDs. Utilising Osram’s latest power chip technology they remain efficient when driven at currents of up to 1000mA, additionally a low thermal resistance of 7K/W ensures cool running and a highly efficient product. Oslon 150 9+ PowerStars are compact, powerful LED light sources built on aluminium substrates for optimal thermal management. Pre-wired with 200mm wires for ease of use, Oslon 150 9+ PowerStars are suitable for a wide range of applications including: general lighting, decorative lighting, task lighting, spot lighting, downlighters, retail lighting and entertainment lighting.

Oslon 150 9+ PowerStar LED arrays contain 9 Oslon SSL 150 LEDs with integral 150° silicone resin lenses

Up to 100,000 hour lifetime to 70% of original brightness

Mounting holes to fit M3 screws allows easy installation

PowerStar size (L x W x H): 20mm x 20mm x 3.85mm

PowerStars LED arrays can be linked together to produce longer chains

Current range 100 to 1,000mA

200mm connecting wires as standard

See datasheet for suitable heat sinks, power supplies and secondary lenses and reflectors

Intelligent LED Solutions LED Modules - PowerStars


Warning

PowerStar LED arrays will overheat in operation if not attached to a suitable heat sink, over heating can cause failure or irreparable damage.
Do not operate PowerStar LED arrays with a power supply with unlimited current. Connection to constant voltage power supplies that are not current limited may cause the PowerStar LED array to consume current above the specified maximum and cause failure or irreparable damage.
