- RS品番:
- 220-9928
- メーカー型番:
- 9703 - 33X25
- メーカー/ブランド名:
- 3M
3 海外在庫あり - 通常4営業日でお届け
12 海外在庫あり - 通常5営業日でお届け
追加されました
単価: 購入単位は 個
¥47,420.00
(税抜)
¥52,162.00
(税込)
個 | 単価 |
1 + | ¥47,420.00 |
- RS品番:
- 220-9928
- メーカー型番:
- 9703 - 33X25
- メーカー/ブランド名:
- 3M
その他
- COO(原産国):
- US
詳細情報

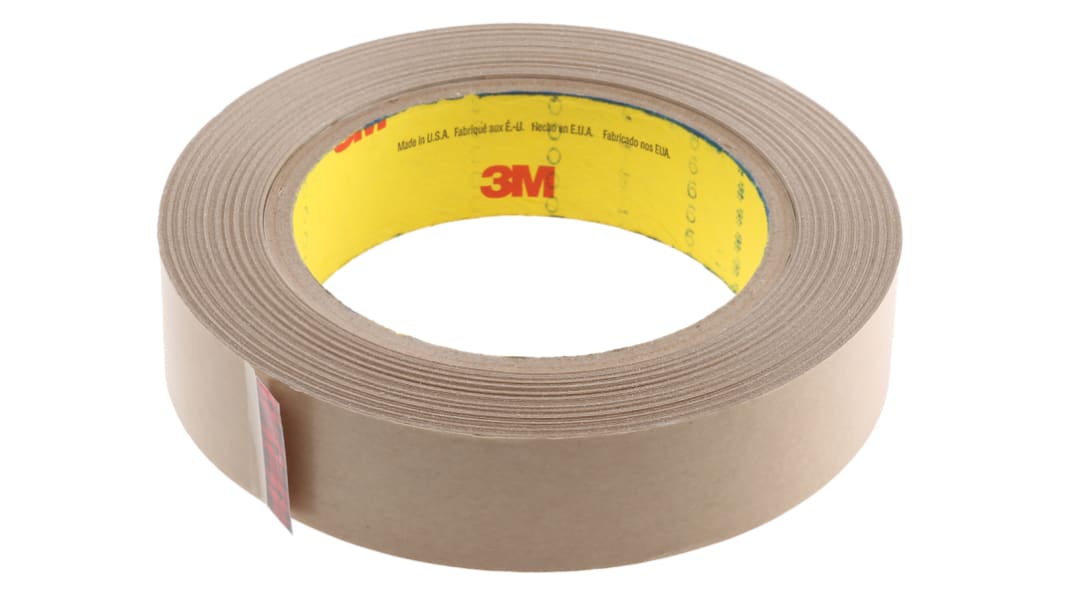

3M ™ Z 軸電気導電性テープ 9703
3M ™の 9703 導電性テープの紹介です。このテープはXYZ方向に通電する感圧粘着テープです。接着剤には銀の粒子が充填されているため、基板間接着剤の厚さ( Z 方向)を通して相互接続できます。
3M ™ 9703 は、他のフレキシブル基板、硬質基板 (PCB) 、または LCD スクリーンと、中ピッチのフレキシブル回路を電気的に接続し、機械的に接着します。導電性があり、銅、金、 FR-4 エポキシ、ポリエステルフィルムなどの一般的な基板に対して優れた粘着性があります。低い接触抵抗とテープ構造により、優れた EMI 性能を発揮します。
特長:
低ガス放出アクリル系粘着剤
異方性 Z 軸の導電率
PSA タック特性
熱硬化不要
組み立て作業で使いやすい
異方性 Z 軸の導電率
PSA タック特性
熱硬化不要
組み立て作業で使いやすい
用途
3M ™ 9703 導電性テープは、他のフレキシブル回路、硬質基板( PCB )、 LCD 画面へのフレキシブル回路の相互接続に最適です。ディスプレイ用の EMI シールドや、 EMI / RFI キャビネットやエンクロージャへのガスケット取り付け用です。
アンテナの接合(アース付き)
EMI シールド ( アース付き )
フレックスボンディング、フレックスボンディング(アース付き)
フレックス補強剤の接合(アース付)
アンテナの接合(アース付き)
EMI シールド ( アース付き )
フレックスボンディング、フレックスボンディング(アース付き)
フレックス補強剤の接合(アース付)
3M ™導電性粘着タイプ転写テープ 9703 、透明、 25 mm x 33 m
3M ™導電性接着剤転写テープ 9703 は、低ガス放出の Z 軸異方性導電性感圧接着剤( CPSA )テープです。この両面テープには、電子基板を相互接続するための銀導電性粒子が充填されています。EMI シールド及びアース用途向けに設計されており、電磁両立性要件に適合します。
Features & Benefits
• The tape provides anisotropic electrical conductivity for interconnection between substrates
• Suitable for bonding medium pitch flexible circuits with rigid PCBs or LCD screens
• Offers good adhesion to common PCB substrates and EMI/RFI shield materials
• Stable electrical performance in flexible circuit interconnections
• Mechanical reinforcement may be required for specific applications
• Provides stable electrical resistance in varying environmental conditions
• Suitable for bonding medium pitch flexible circuits with rigid PCBs or LCD screens
• Offers good adhesion to common PCB substrates and EMI/RFI shield materials
• Stable electrical performance in flexible circuit interconnections
• Mechanical reinforcement may be required for specific applications
• Provides stable electrical resistance in varying environmental conditions
Applications
• Bonding flexible circuits with rigid PCBs or LCD screens
• Connecting EMI/RFI shields and gaskets to metal frames and enclosures
• Splicing polyester flex circuits and LCD assembly
• Connecting EMI/RFI shields and gaskets to metal frames and enclosures
• Splicing polyester flex circuits and LCD assembly
Can it bond flexible circuits with rigid PCBs?
Yes, this tape is specifically designed to bond medium pitch flexible circuits with rigid printed circuit boards.
Is it suitable for connecting EMI/RFI shields to metal frames?
Yes, this tape offers good adhesion for connecting EMI/RFI shields and gaskets to metal frames and enclosures.
Will it provide stable electrical performance in flexible circuit interconnections?
Yes, it ensures stable electrical performance in any flexible circuit interconnection application, though mechanical reinforcement may be necessary in some cases.
Can it be used for splicing polyester flex circuits?
Yes, it is well-suited for applications like splicing polyester flex circuits and LCD assembly.
Is it temperature-resistant for various environmental conditions?
The tape can handle temperatures ranging from -40 to +85°C in properly designed end-use applications.
仕様
特性 | |
---|---|
テープの種類 | 粘着テープ |
トータル厚さ | 0.05mm |
幅 | 25mm |
長さ | 33m |
導電率 | 導電性 |
接着強度 | 907 Pa |
接着材料 | アクリレート |
最低温度抵抗 | -40°C |
モデル番号 | 9703 |
