- RS品番:
- 159-7421
- メーカー型番:

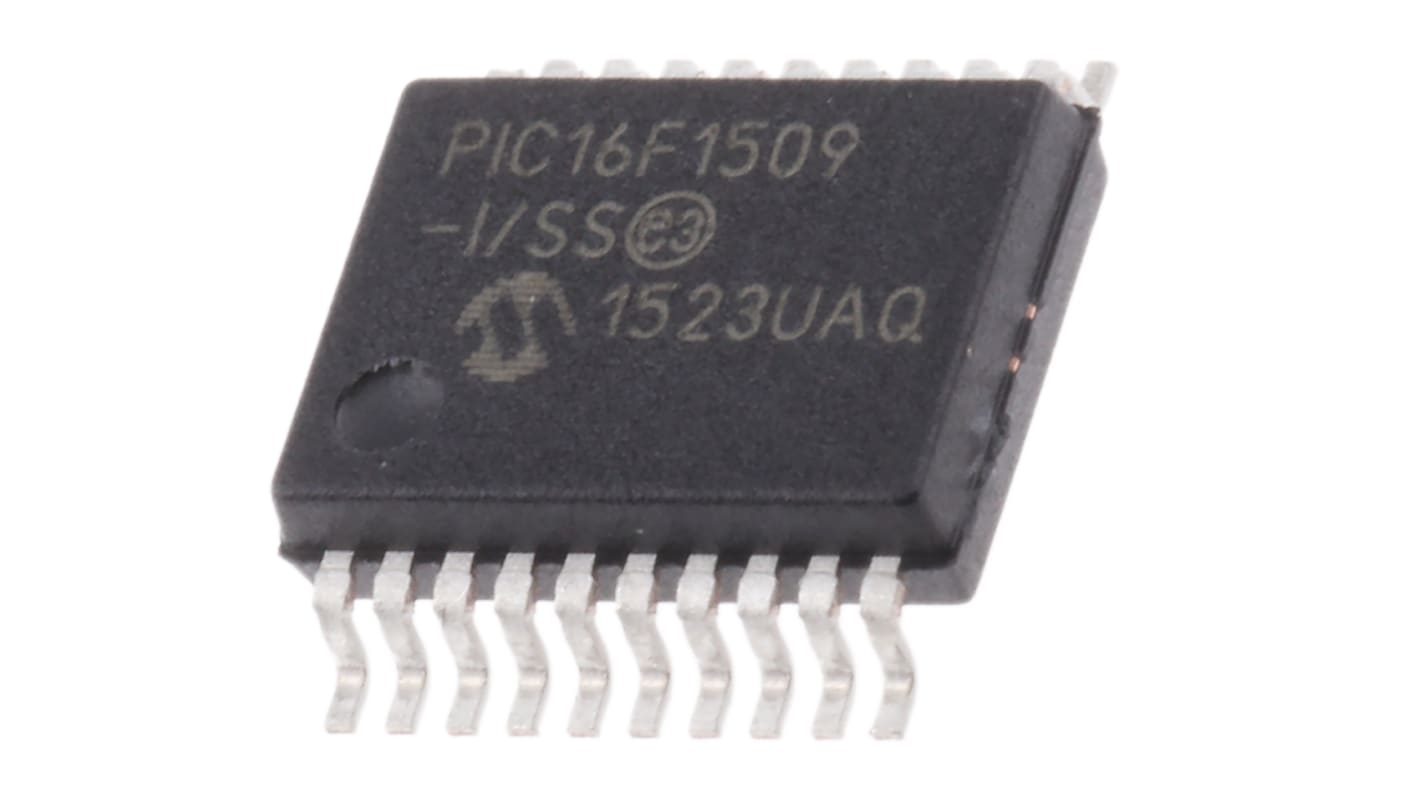

- PIC16F1509-I/SS
- メーカー/ブランド名:
- Microchip
取扱終了
- RS品番:
- 159-7421
- メーカー型番:
- PIC16F1509-I/SS
- メーカー/ブランド名:
- Microchip
その他
- COO(原産国):
- TH
詳細情報
PIC16F1508/1509 8-Bit Flash Microcontrollers
The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchips PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F1508/1509 family of microcontrollers is based upon Microchips enhanced mid-range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 5 MIPS, up to 14 Kbytes program memory with data memory of up to 512 bytes RAM. On board is a configurable oscillator with ±1% accuracy.
The PIC16F1508/1509 family of microcontrollers is based upon Microchips enhanced mid-range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 5 MIPS, up to 14 Kbytes program memory with data memory of up to 512 bytes RAM. On board is a configurable oscillator with ±1% accuracy.
Microcontroller Features
20 MHz Max. CPU Speed
49 Instructions
16 Level Hardware Stack
16 MHz Internal Oscillator – Selectable Frequency Range 16 MHz to 32 kHz
18 I/O Pins
XLP Technology
Power-On Reset (POR)
Power-Up Timer (PWRT)
Programmable Low Power Brown-Out Reset (LPBOR)
Extended Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
49 Instructions
16 Level Hardware Stack
16 MHz Internal Oscillator – Selectable Frequency Range 16 MHz to 32 kHz
18 I/O Pins
XLP Technology
Power-On Reset (POR)
Power-Up Timer (PWRT)
Programmable Low Power Brown-Out Reset (LPBOR)
Extended Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
Peripherals
12 Channel 10-bit Analogue to Digital Converter (ADC)
5-bit Digital to Analogue Converter (DAC)
Two Comparators
Voltage Reference
Two 8-bit Timers
One 16-bit Timer
Four 10-bit PWM Modules
Master Synchronous Serial Port (MSSP) with SPI and I2C
Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)
Four Configurable Logic Cell (CLC) Modules
Numerically Controlled Oscillator (NCO)
Complimentary Waveform Generator (CWG)
5-bit Digital to Analogue Converter (DAC)
Two Comparators
Voltage Reference
Two 8-bit Timers
One 16-bit Timer
Four 10-bit PWM Modules
Master Synchronous Serial Port (MSSP) with SPI and I2C
Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)
Four Configurable Logic Cell (CLC) Modules
Numerically Controlled Oscillator (NCO)
Complimentary Waveform Generator (CWG)
受注確定後にお客様専用製品として商品化されるため、発注後のキャンセル・返品はお受けできません。
仕様
特性 | |
---|---|
ファミリー名 | PIC16F |
パッケージタイプ | SSOP |
実装タイプ | 表面実装 |
ピン数 | 20 |
デバイスコア | PIC |
データバス幅 | 8bit |
プログラムメモリサイズ | 8192ワード |
最大周波数 | 20MHz |
RAMサイズ | 512 B |
USBチャンネル | 0 |
PWMユニット数 | 4 x 10 bit |
SPIチャンネル数 | 1 |
標準動作供給電圧 | 2.3 → 5.5 V |
UARTチャンネル数 | 0 |
I2Cチャンネル数 | 1 |
CANチャンネル数 | 0 |
USARTチャネルの数 | 1 |
ADCユニット数 | 1 |
PWM | 4 ( 10 ビット) |
最大イーサネットチャンネル数 | 0 |
動作温度 Min | -40 °C |
インストラクションセットアーキテクチャ | RISC |
寸法 | 7.5 x 5.6 x 1.85mm |
動作温度 Max | +85 °C |
幅 | 5.6mm |
LINチャネルの数 | 1 |
高さ | 1.85mm |
長さ | 7.5mm |
ADC数 | 12 x 10ビット |
PCIチャンネル数 | 0 |
プログラムメモリタイプ | フラッシュ |
イーサネットチャンネル数 | 0 |
