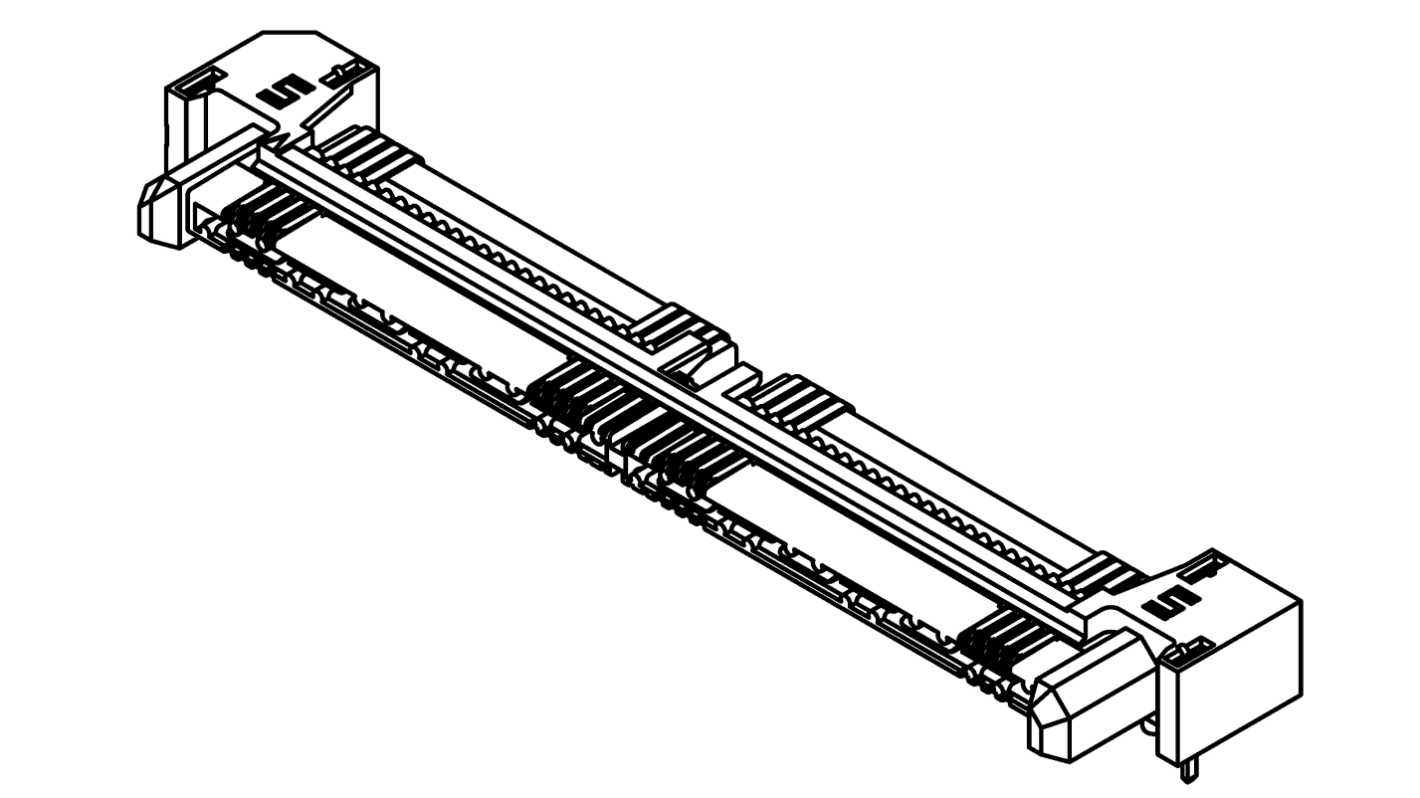

Samtec 基板ヘッダ, 104極, 800 μm, 2列

ボリュームディスカウントを利用できます

あと30個追加すると¥20,520お得になります

一括購入価格オプションを表示

1個小計:*

¥5,471

(税抜)

¥6,018

(税込)

Add to Basket
数量を選択または入力
一時的に在庫切れ
  • 本日発注の場合は 2027年1月25日 に入荷予定
「配達日を確認」をクリックすると、在庫と配送の詳細が表示されます。

個
単価
割引額
1 - 29¥5,471-
30 - 299¥4,787¥20,520
300 - 399¥4,103¥410,400
400 - 499¥3,419¥820,800
500 +¥2,736¥1,367,500

* 表示は参考価格です。ご購入数量によって価格は変動します。なお、上記数量を大きく超える大量ご購入の際は右下チャットからお問合せください。

梱包形態
RS品番:
767-7146
メーカー型番:
QRM8-052-01-L-RA-GP
メーカー/ブランド名:
Samtec
製品情報(複数選択可)を選択して、類似製品を検索します。
すべて選択

ブランド

Samtec

プロダクトタイプ

基板ヘッダ

シリーズ

Q Rate QRM8

電流

2.0

ピッチ

800μm

極数

104

行数

2

シュラウド/アンシュラウド

シュラウド

コネクタシステム

基板対基板

コンタクトポイント材質

金

接触オペレーション

リン酸銅

電圧

215V

QRM8 Series Slim Body Ground Plane Headers


These Board to Board QRM8 Series connectors have 0.25 μm Gold plated contacts with Tin plated Tails. This range of Board to Board QRM8 Series connectors are available: with and without Guide Posts, straight or right angle, 2, 5 or 7 mm body heights. Alignment Pins are included in this rangeThe design of the Board to Board QRM8 Series connector includes samtec's Edge Rate contacts.

QRM8-xxx-02.0-x-x-x-xx have a Body height of 2 mm

QRM8-xxx-07.0-x-x-x-xx have a Body height of 7 mm

QRM8-xxx-xx.x-x-x-x-GP have Guide Posts

QMR8-xxx-xx-x-RA-GP have a horizontal orientation with Guide Posts

0.8mm Board to Board - Samtec


Note

Mates with QRF8 Series Sockets see stock number 767-7082 typical.
Guide Post versions require Guide Post mating articles.
