WAGO 737 Series PCB Connector, 18-Contact, 7.5 mm Pitch, Through Hole, 3 Row
- RS-stocknr.:
- 224-081
- Fabrikantnummer:
- 737-506
- Fabrikant:
- WAGO
Subtotaal (1 doos van 24 eenheden)*
€ 243,12
(excl. BTW)
€ 294,18
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 90,00
Tijdelijk niet op voorraad
- Verzending vanaf 18 november 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Dozen | Per Doos | Per stuk* |
|---|---|---|
| 1 + | € 243,12 | € 10,13 |
*prijsindicatie
- RS-stocknr.:
- 224-081
- Fabrikantnummer:
- 737-506
- Fabrikant:
- WAGO
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 18 | |
| Pitch | 7.5mm | |
| Number of Rows | 3 | |
| Current | 21A | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Mount Type | Through Hole | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Colour | Grey | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 40V | |
| Depth | 31mm | |
| Standards/Approvals | No | |
| Width | 43.5mm | |
| Series | 737 | |
| Alles selecteren | ||
|---|---|---|
Merk WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 18 | ||
Pitch 7.5mm | ||
Number of Rows 3 | ||
Current 21A | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.08mm² | ||
Mount Type Through Hole | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Colour Grey | ||
Wire Connection Method Cage Clamp | ||
Voltage 40V | ||
Depth 31mm | ||
Standards/Approvals No | ||
Width 43.5mm | ||
Series 737 | ||
- Land van herkomst:
- PL

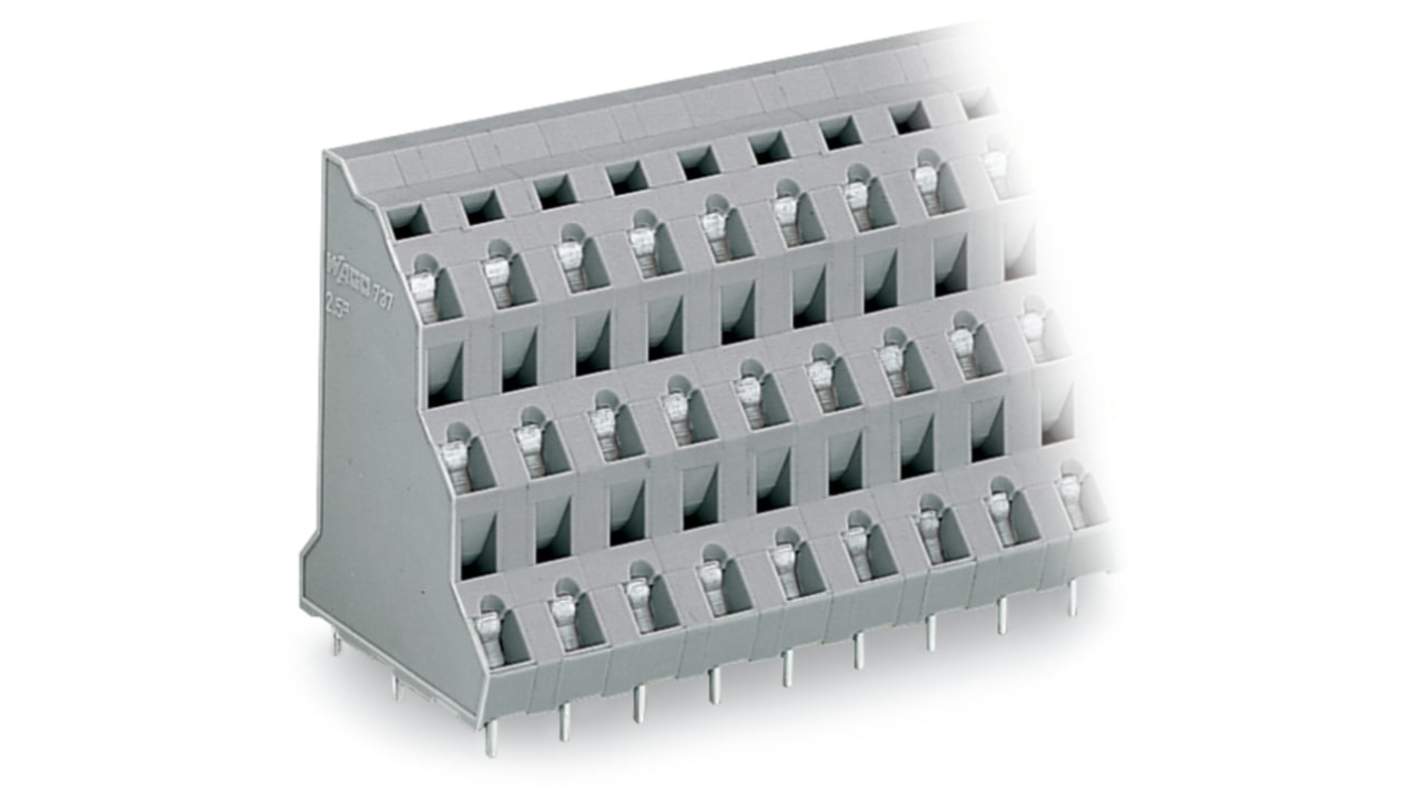

The Wago Triple Deck PCB Terminal Block offers innovative solutions for high density wiring in cramped spaces. Designed with a triple deck architecture, it enables efficient space utilisation while maintaining robust connectivity. This product features advanced CAGE CLAMP technology, ensuring reliable terminal connections suitable for a variety of conductor types. With a rated current of 21 A and diverse connectivity options, it adeptly meets the demanding requirements of modern electrical applications.
Rated for overvoltage category III suitable for various applications
Supports both solid and fine stranded conductors for versatile usage
Robust polyamide housing provides excellent environmental resistance
Strip length requirements are designed for easy conductor preparation
Compact size optimises usage in limited spaces
Compliant with RoHS demonstrating environmental responsibility
Wide operating temperature range ensures performance in diverse conditions
