- RS品番:
- 621-0590
- メーカー型番:
- RS-35-12
- メーカー/ブランド名:
- MEAN WELL
16 国内在庫あり - 通常1営業日でお届け
37 海外在庫あり - 通常4営業日でお届け
単価: 購入単位は 個
¥3,030.00
(税抜)
¥3,333.00
(税込)
個 | 単価 |
1 + | ¥3,030.00 |
- RS品番:
- 621-0590
- メーカー型番:
- RS-35-12
- メーカー/ブランド名:
- MEAN WELL
その他
- COO(原産国):
- CN
詳細情報

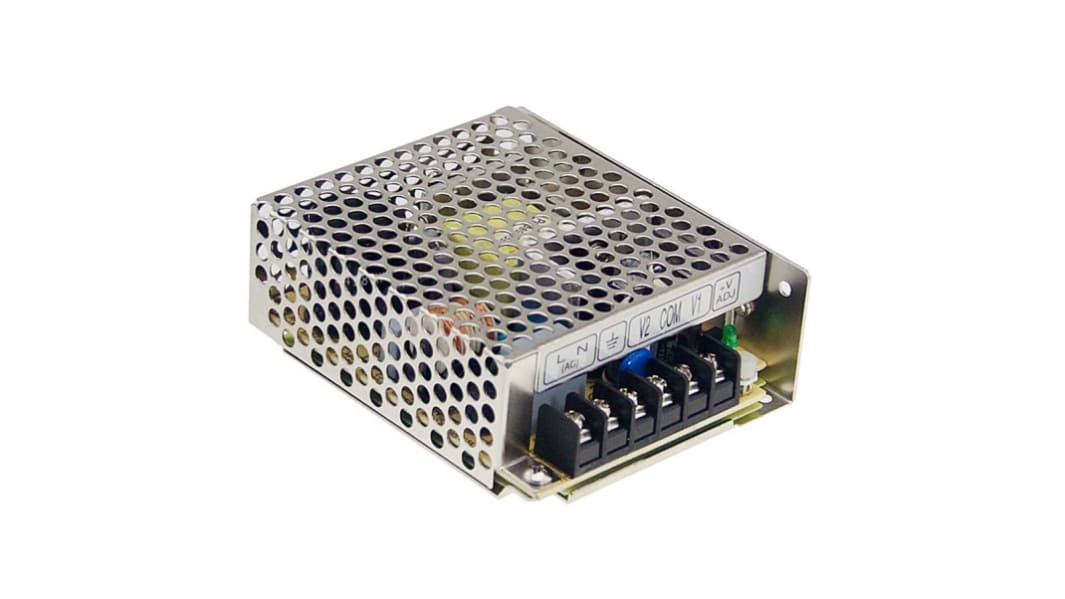

Mean Well Power Switch Mode Power Supply
The Mean Well RS-35 series 36W single output AC to DC embedded switch mode power supply has an output current rating of 3A at 12VDC. It has a universal input supply voltage rating from 88VAC to 264VAC and 125VDC to 373VDC.
Note:
De-rating 2% per °C above 50°C on all types except
Note:
De-rating 2% per °C above 50°C on all types except
RD50, 65, 125, RS-75-3.3 types de-rating 2% per °C above 45°C
RD85, RS-100-3.3, RS-150-3.3 and 5 de-rating 2% per °C above 40°C
Features and Benefits
high-efficiency up to 84.5%
Long life and high reliability
High power density
High operating temperature up to 70°C
Long life electrolytic capacitors 105°C
Easy installation
Screw terminals
Adjustable output voltage for single output types, 10.8V to 13.2V at 12V and 22V to 27.6V at 24V
Adjustable output voltage for dual output types on output 1, -5% to 10%
Dual outputs have a minimum load requirement
The total load must not exceed the rated output power
Cooling by free air convection
Withstands a 5G vibration test
Overload and overvoltage protection
Full load burn-in test
Long life and high reliability
High power density
High operating temperature up to 70°C
Long life electrolytic capacitors 105°C
Easy installation
Screw terminals
Adjustable output voltage for single output types, 10.8V to 13.2V at 12V and 22V to 27.6V at 24V
Adjustable output voltage for dual output types on output 1, -5% to 10%
Dual outputs have a minimum load requirement
The total load must not exceed the rated output power
Cooling by free air convection
Withstands a 5G vibration test
Overload and overvoltage protection
Full load burn-in test
Certifications
EN 60950-1
UL 60950-1
TUV approved
CB approved
UL approved
EN 61000-3-2 (harmonic current)
EN 55022 class B (EMC)
EN55032 (CISPR32) class B
EN61000-3-2,-3
GB9254 class B
GB17625.1
EN55024
EN61000-6-1
Criteria A
UL 60950-1
TUV approved
CB approved
UL approved
EN 61000-3-2 (harmonic current)
EN 55022 class B (EMC)
EN55032 (CISPR32) class B
EN61000-3-2,-3
GB9254 class B
GB17625.1
EN55024
EN61000-6-1
Criteria A
仕様
特性 | |
---|---|
出力電圧 | 12V dc |
出力電流 | 3A |
定格電力 | 36W |
出力数 | 1 |
入力電圧 | 125 → 373 V dc, 88 → 264 V ac |
実装タイプ | シャーシマウント |
パッケージタイプ | カバー付 |
長さ | 99mm |
幅 | 82mm |
奥行き | 36mm |
効率 | 84.5% |
最低温度 | -25°C |
最高温度 | +70°C |
重量 | 300g |
