- RS品番:
- 186-1448P
- メーカー型番:

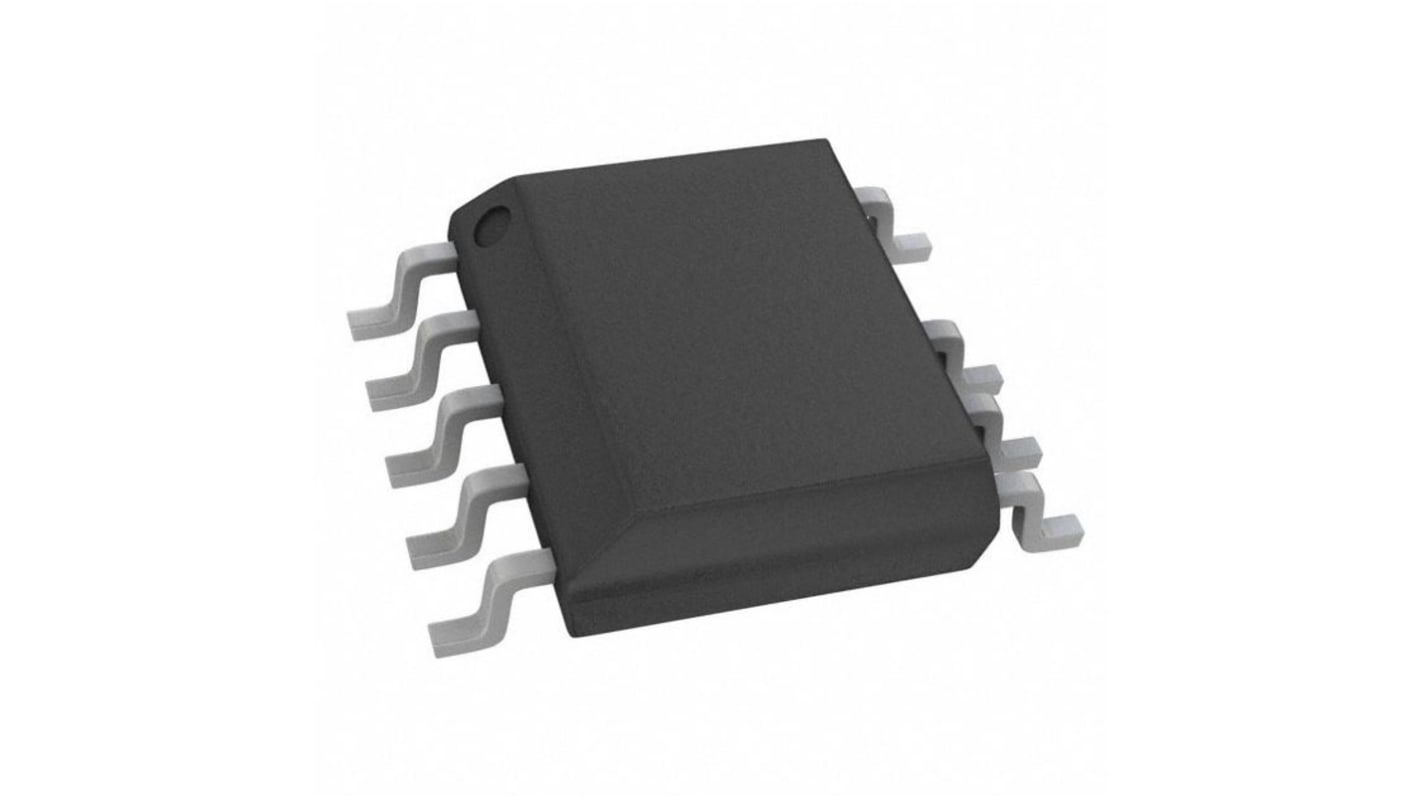

- NCP1616A2DR2G
- メーカー/ブランド名:
- onsemi
この製品はご注文いただけません
大変申し訳ありませんが、在庫切れのため現在ご注文いただけません。
追加されました
単価: 個(リールカット) 150個以上で出荷する場合、前後にリーダーとトレイラーが付き、リールに巻き直します。
¥182.60
(税抜)
¥200.86
(税込)
個 | 単価 |
125 - 1195 | ¥182.60 |
1200 - 1595 | ¥151.60 |
1600 - 1995 | ¥130.80 |
2000 + | ¥126.20 |
- RS品番:
- 186-1448P
- メーカー型番:
- NCP1616A2DR2G
- メーカー/ブランド名:
- onsemi
データシート
その他
詳細情報
High Voltage Start-Up Circuit
Critical conduction mode with current controlled frequency foldback
Integrated Input Filter Capacitor (X2) Discharge Circuitry
動的応答エンハンサ
入力過電圧保護
出力駆動能力: -500 mA
AC Line Brownout Detection
Improved efficiency at light load and fast startup time
負荷範囲全域での変換効率を最適化
Improved light load efficiency and elimination of external resistors
ラインや負荷ステップの過度応答を改善
Reduces acoustic noise and stress in the event of an overvoltage fault
Supports wide range of MOSFETs and power levels
Protects boost stage power components during line fault conditions
用途
AC回線の電源
照明バラスト
LED Lighting Drivers and Power Supplies
最終製品
All-In-One Computers
High Powered Adapters
Flat TV / LED-TV / LCD-TV / Plasma
Critical conduction mode with current controlled frequency foldback
Integrated Input Filter Capacitor (X2) Discharge Circuitry
動的応答エンハンサ
入力過電圧保護
出力駆動能力: -500 mA
AC Line Brownout Detection
Improved efficiency at light load and fast startup time
負荷範囲全域での変換効率を最適化
Improved light load efficiency and elimination of external resistors
ラインや負荷ステップの過度応答を改善
Reduces acoustic noise and stress in the event of an overvoltage fault
Supports wide range of MOSFETs and power levels
Protects boost stage power components during line fault conditions
用途
AC回線の電源
照明バラスト
LED Lighting Drivers and Power Supplies
最終製品
All-In-One Computers
High Powered Adapters
Flat TV / LED-TV / LCD-TV / Plasma
受注確定後にお客様専用製品として商品化されるため、発注後のキャンセル・返品はお受けできません。
仕様
特性 | |
---|---|
出力電圧 | 3.85 → 4.1V dc |
入力電圧 | 9.5 → 28V dc |
実装タイプ | 表面実装 |
出力数 | 1 |
パッケージ | SOIC |
最低温度 | -40°C |
最高温度 | +150°C |
アプリケーション | 薄型テレビ, LEDドライバ, 力率改善が必要なオフライン電化製品, PC電源 |
保護機能 | 過電流保護, 過電圧保護, 短絡保護, サーマルシャットダウン保護 |
スイッチング周波数範囲 | 50kHz |
長さ | 5mm |
幅 | 4mm |
奥行き | 1.75mm |
