- RS品番:
- 160-278
- メーカー型番:
- E1ZI10 12-240V AC/DC
- メーカー/ブランド名:
- Tele
4 海外在庫あり - 通常5営業日でお届け
追加されました
単価: 購入単位は 個
¥13,070.00
(税抜)
¥14,377.00
(税込)
個 | 単価 |
1 - 24 | ¥13,070.00 |
25 - 49 | ¥12,750.00 |
50 + | ¥12,283.00 |
- RS品番:
- 160-278
- メーカー型番:
- E1ZI10 12-240V AC/DC
- メーカー/ブランド名:
- Tele
その他
- COO(原産国):
- AT
詳細情報

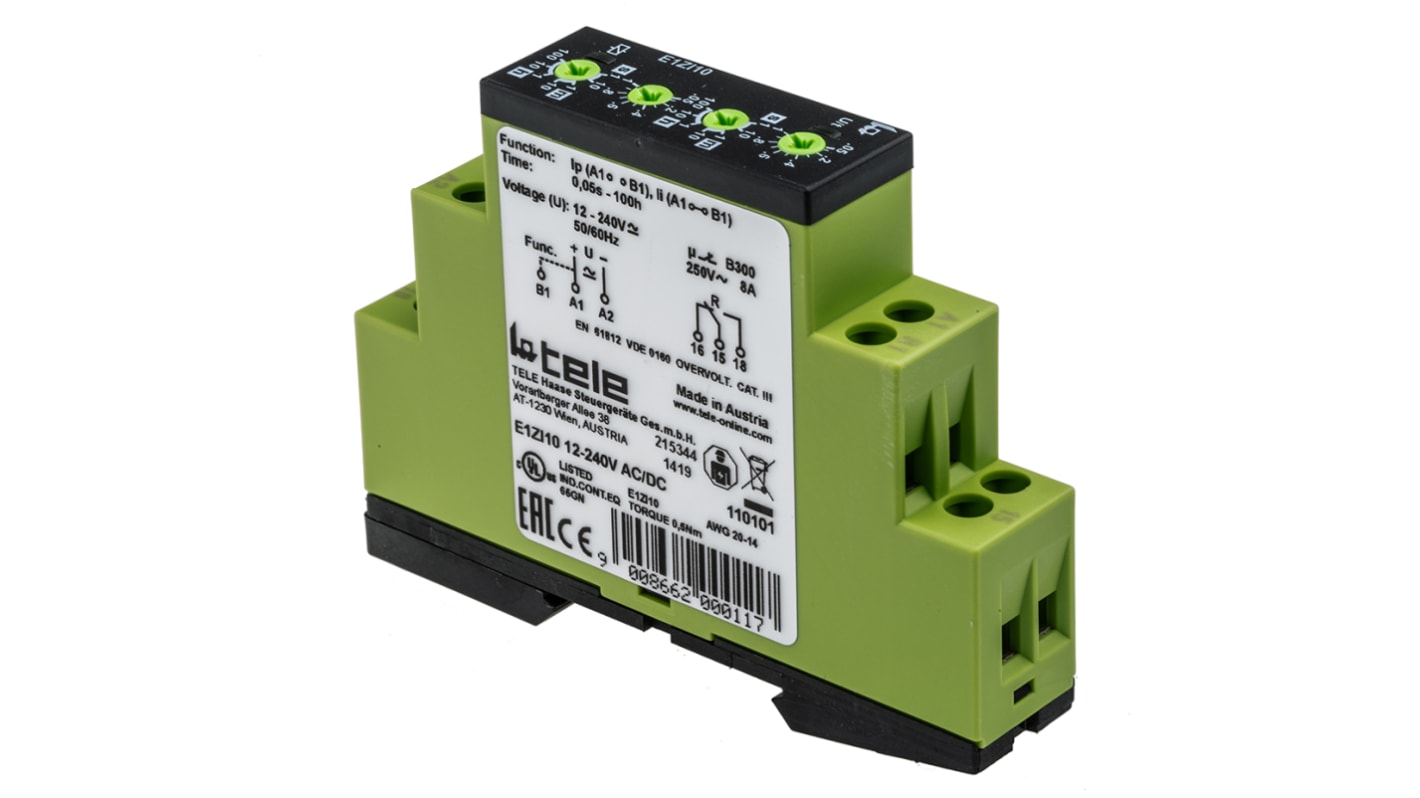

Tele Multi-function Timer Relay
The Tele E1ZI10 series multi-function timer relay is solid-state, compact equipment with high precision. It provides delay functions asymmetrical flasher with pulse-start and asymmetrical flasher with pause start in the range of 50 milliseconds to 100 hours. This timer relay is enabled with a comprehensive range of timing functions to suit a wide variety of applications. Due to the highly versatile voltage range, this timer relay can be installed into new and existing applications in an extremely hassle free way. Its affordability, optimum space management, and high performance make it ideal for a wide range of applications in process control environments.
Features and Benefits
SPDT 1C/O contact configuration with relay output 8A at 250VAC
Dual supply voltage ranging from 12VAC/VDC to 240VAC/VDC
Installation design for trouble-free mounting
Self-extinguishing plastic housing
Reset time of 100ms
LED status indication
DIN-rail mounting
Dual supply voltage ranging from 12VAC/VDC to 240VAC/VDC
Installation design for trouble-free mounting
Self-extinguishing plastic housing
Reset time of 100ms
LED status indication
DIN-rail mounting
Applications
Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
IP20 rated terminals
IP40 rated housing
IEC 60947-5-1
IEC 60664-1
IEC 60721-3-3
IEC 61812-1
IP40 rated housing
IEC 60947-5-1
IEC 60664-1
IEC 60721-3-3
IEC 61812-1
仕様
特性 | |
---|---|
電源電圧 | 12 → 240V ac/dc |
取り付けタイプ | DINレール |
タイマ機能の数 | 非対称サイクルパルススタート |
時間範囲 | 0.05 s → 100h |
コンタクト数 | 1 |
タイマ機能の数 | 多機能 |
接点構成 | SPDT |
時間増分 | 時間 , ミリ秒 , 分 , 秒 |
電流 Max | 8A |
最大電圧 | 250V ac |
スイッチ設定 | SPDT |
幅 | 17.5mm |
電源 | 外部 |
シリーズ | E1ZI10 |
奥行き | 65mm |
動作温度 Max | +55°C |
長さ | 87mm |
動作温度 Min | -25°C |
遅延時間 | (Reset) 100ms |
