- RS品番:
- 354-2664
- メーカー型番:
- B-13AP
- メーカー/ブランド名:
- NKK Switches
31 国内在庫あり - 通常1営業日でお届け
追加されました
単価: 購入単位は 個
¥264.00
(税抜)
¥290.40
(税込)
個 | 単価 |
1 - 24 | ¥264.00 |
25 - 249 | ¥255.00 |
250 - 499 | ¥245.00 |
500 - 999 | ¥236.00 |
1000 + | ¥226.00 |
- RS品番:
- 354-2664
- メーカー型番:
- B-13AP
- メーカー/ブランド名:
- NKK Switches
その他
- COO(原産国):
- JP
詳細情報

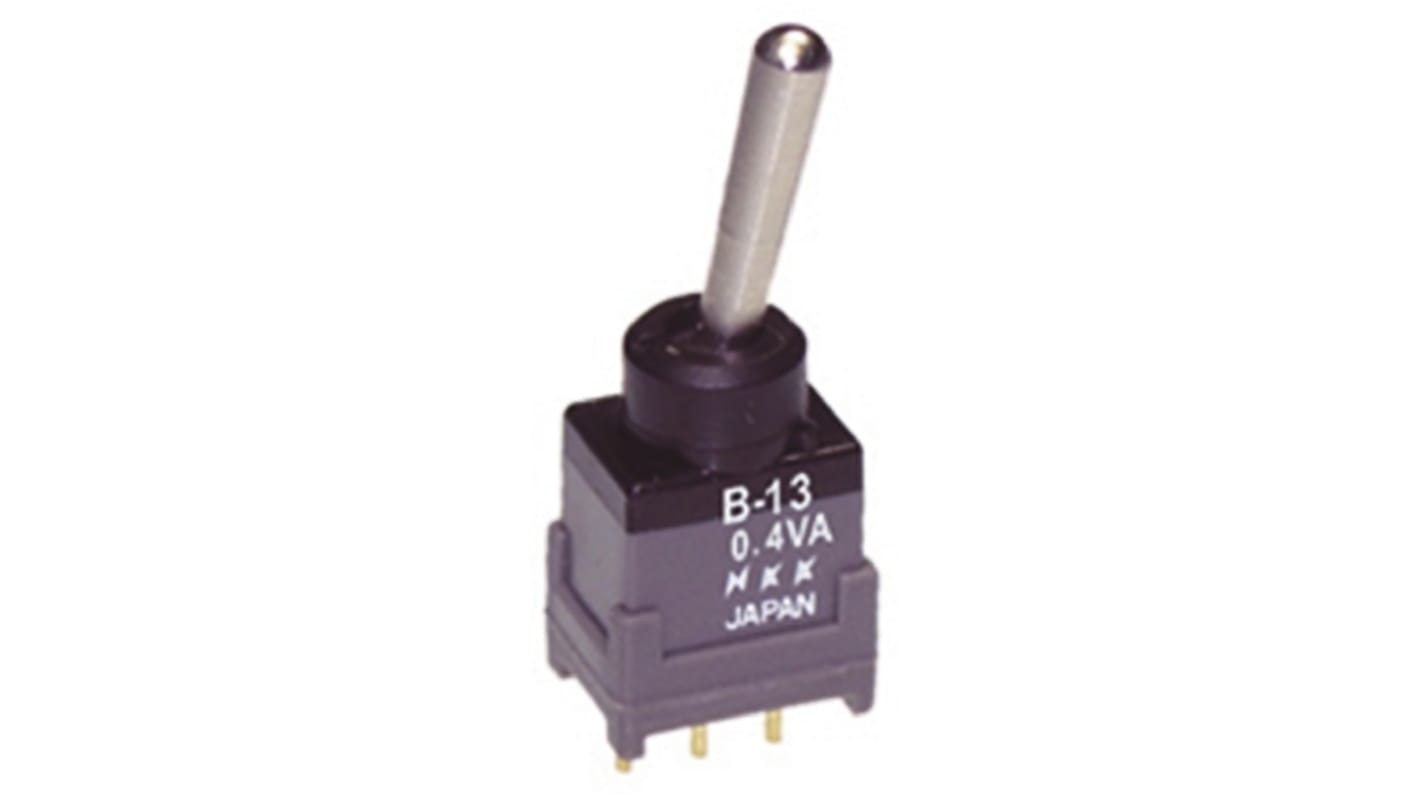

Toggle Switch B Series (Anti-Static Type)
Anti-static bushing and support bracket
PC board can be grounded (Excluding straight terminal)
Pitch between terminals 2.54mmxn
Completely washable - high ingress protection construction
High contact reliabilty through US patented contact mechanism
Certification: IECQ
Washing conditions: 5 minutes max in 10cm deep bath
PC board can be grounded (Excluding straight terminal)
Pitch between terminals 2.54mmxn
Completely washable - high ingress protection construction
High contact reliabilty through US patented contact mechanism
Certification: IECQ
Washing conditions: 5 minutes max in 10cm deep bath
仕様
特性 | |
---|---|
接点構成 | SPDT |
動作特性 | On-Off-On |
コンタクト定格電流 | 100 mA @ 28 V ac/dc |
実装タイプ | PCB |
末端様式 | スルーホール |
アクチュエータ長さ | 10mm |
アクチュエータ材料 | 真鍮 |
コンタクト材質 | りん青銅金めっき |
接触抵抗 | 50mΩ |
動作温度 Min | -30°C |
動作温度 Max | +85°C |
機械的寿命 | 100000Operations |
動作温度範囲 | -30 → +85°C |
