- RS品番:
- 405-8671
- メーカー型番:
- 52103220+53112220
- メーカー/ブランド名:
- Lapp
4 海外在庫あり - 通常4営業日でお届け
追加されました
単価: 購入単位は 個
¥910.00
(税抜)
¥1,001.00
(税込)
個 | 単価 |
1 - 11 | ¥910.00 |
12 - 24 | ¥833.00 |
25 + | ¥800.00 |
- RS品番:
- 405-8671
- メーカー型番:
- 52103220+53112220
- メーカー/ブランド名:
- Lapp
その他
- COO(原産国):
- DE
詳細情報

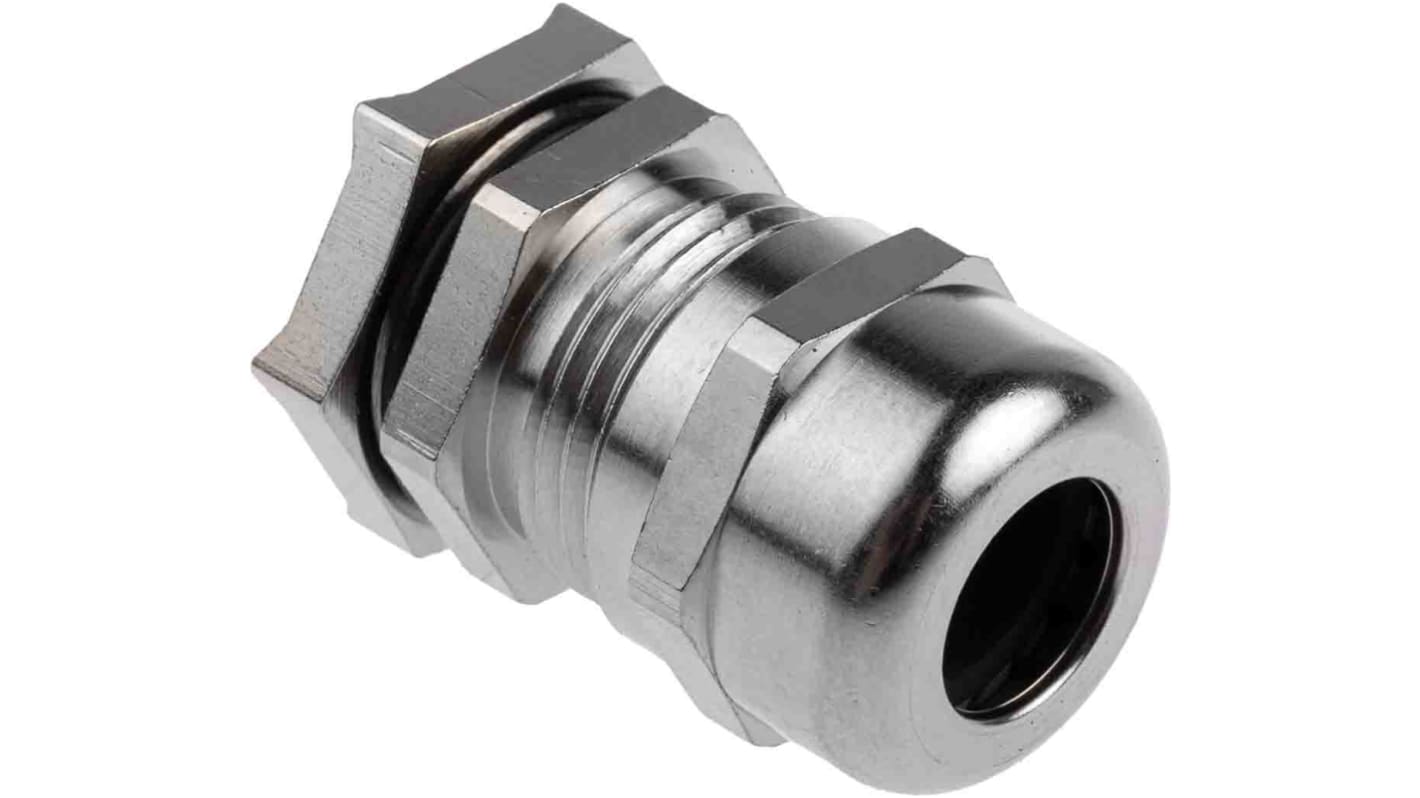

Lapp PG / メトリックニッケルめっき黄銅製ケーブルグランド
Lappニッケルめっき黄銅製ケーブルグランドには、PGねじとメートルねじのタイプがあります。
このグランドは、内部シースあり / なしのケーブルに適合します。
特長と利点
最高のEMC保護を提供する低抵抗のスクリーンコンタクト
さまざまなスクリーン径をクランプ可能な高導電性のフレキシブルなEMCコンタクト
ケーブルの中心合わせ、取り付け、張力の緩和、IP68に準拠した密封
優れた機械的強度を備え、簡単に組み付け可能
本体はニッケルめっき真鍮製、インサートはポリアミド製、シーリングリングはネオプレン製
動作温度範囲: -25 → +100 °C
代表的用途
製造機械やプラントエンジニアリングから測定及び制御機器に至る幅広い用途で使用できます。
EMC用途向けのグランドとして最適
ラッカー仕上げ、陽極酸化処理、又は粉体塗装のハウジングに対応
規格
EN50262
付属品
ロックナット
Lapp SKINTOP Cable Sleeve, IP68, Nickel Plated Brass - 52103220+53112220
This cable sleeve by Lapp offers exceptional protection for cables in industrial settings. The IP68 rating ensures waterproofing, while the nickel plated brass construction ensures durability in challenging environments. With the SKINTOP series design, this cable sleeve is a reliable choice for high-quality cable management.
Features & Benefits
• Made from nickel plated brass for robustness and longevity
• IP68 rated for waterproofing, ideal for outdoor and harsh conditions
• Suitable for cable diameters ranging from 4mm to 10mm
• SKINTOP series design ensures secure cable management
• IP68 rated for waterproofing, ideal for outdoor and harsh conditions
• Suitable for cable diameters ranging from 4mm to 10mm
• SKINTOP series design ensures secure cable management
Applications
• Ideal for industrial use to protect cables in challenging environments
Can it withstand high temperatures?
Yes, with a maximum operating temperature of +100°C, this cable sleeve is suitable for various industrial applications.
Will it protect cables in outdoor settings?
Yes, the IP68 rating ensures waterproofing, making it ideal for outdoor installations.
Is it compatible with different cable diameters?
Yes, this cable sleeve can accommodate cable diameters ranging from 4mm to 10mm.
仕様
特性 | |
---|---|
ねじの呼び | PG11 |
最大ケーブル径 | 10mm |
最小ケーブル径 | 4mm |
材質 | ニッケルめっき真鍮 |
色 | メタリック |
シリーズ | SKINTOP |
保護等級 | IP68 |
ロックナット付属 | あり |
動作温度 Max | +100°C |
動作温度 Min | -25°C |
個数 | 1 |
代表規格 | CE |
参照 | SKINTOP |
