- RS品番:
- 515-701
- メーカー型番:
- V15T16-EZ100A02
- メーカー/ブランド名:
- Honeywell
363 海外在庫あり - 通常4営業日でお届け
追加されました
単価: 購入単位は 個
¥944.00
(税抜)
¥1,038.40
(税込)
個 | 単価 |
1 - 24 | ¥944.00 |
25 - 249 | ¥843.00 |
250 - 499 | ¥742.00 |
500 - 999 | ¥641.00 |
1000 + | ¥540.00 |
- RS品番:
- 515-701
- メーカー型番:
- V15T16-EZ100A02
- メーカー/ブランド名:
- Honeywell
その他
- COO(原産国):
- CN
詳細情報

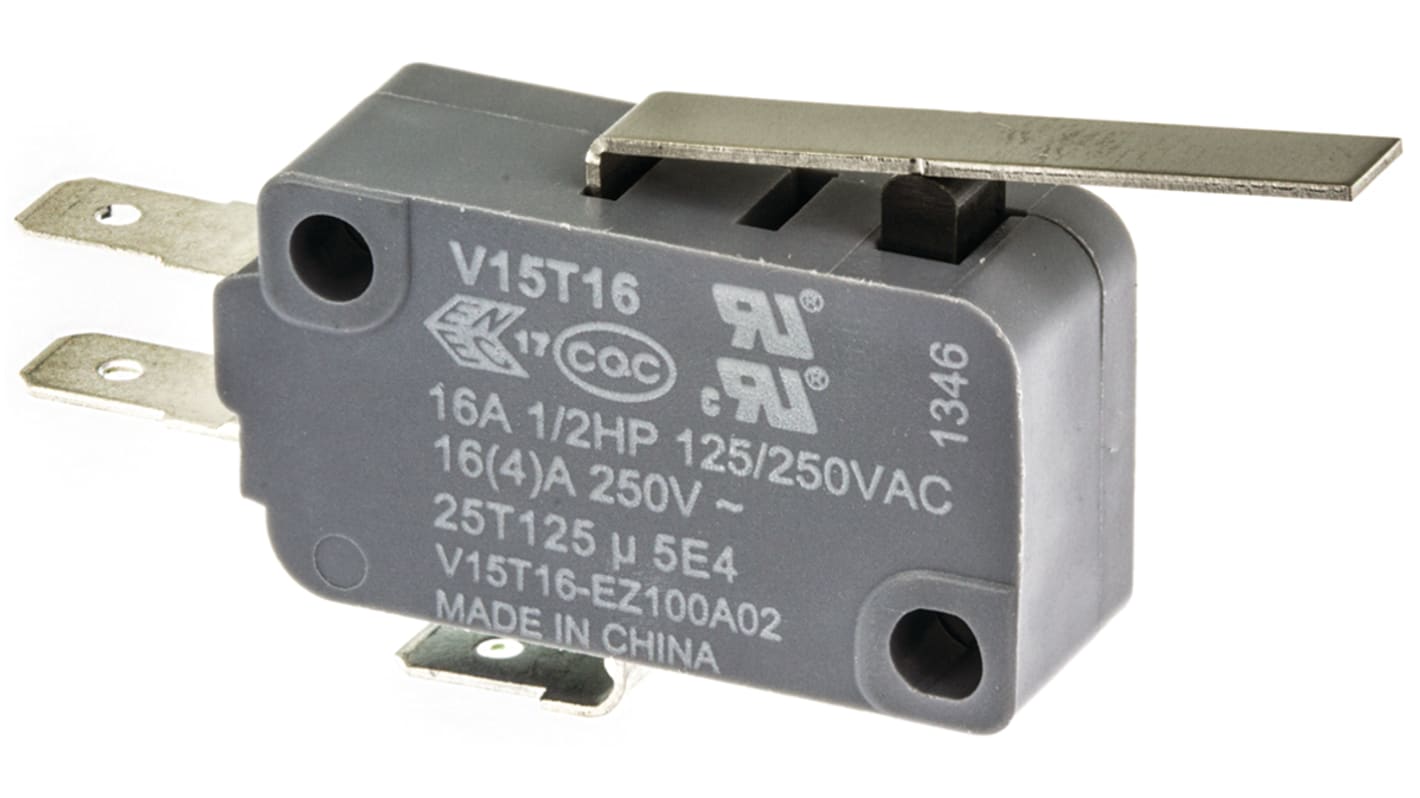

Honeywell Leaf Lever Microswitch, SPDT, 250V AC - V15 Series - V15T16-EZ100A02
This microswitch from Honeywell opens and closes an electrical circuit. It's commonly used as a safety device to prevent machines from being turned on in unsafe conditions. You can also use it in emergency stop controls. The robust switch has a long service life of more than one million operations, so it won't need frequent replacement. The thermoplastic housing material ensures resistance to impact and wear for use in harsh conditions.
Features & Benefits
Quick-connect terminals for ease of installation on a PCB
Silver contacts for superior electrical conductivity and resistance to corrosion
SPDT configuration allows you to control two circuits for versatility
Silver contacts for superior electrical conductivity and resistance to corrosion
SPDT configuration allows you to control two circuits for versatility
Applications
Furnaces
Vending machines
Power washers
Operator controls
Vending machines
Power washers
Operator controls
Can I use this switch for presence detecting?
Yes, you can use this versatile switch for presence detecting on equipment like access doors and sensor level floats.
仕様
特性 | |
---|---|
アクチュエータタイプ | リーフレベル |
末端様式 | タブ |
コンタクト定格電流 | 16 @ 250 V ac A |
接点構成 | SPDT-NO / NC |
操作力 | 0.98 N |
動作温度 Min | -25°C |
動作温度 Max | +125°C |
コンタクト材質 | 銀カドミウムオキサイド |
ケースの材質 | ポリブチレンテレフタレートPET熱可塑性樹脂 |
機械的寿命 | 5000000Operations |
リリース力 | 0.25N |
動作温度範囲 | -25 → +125°C |
