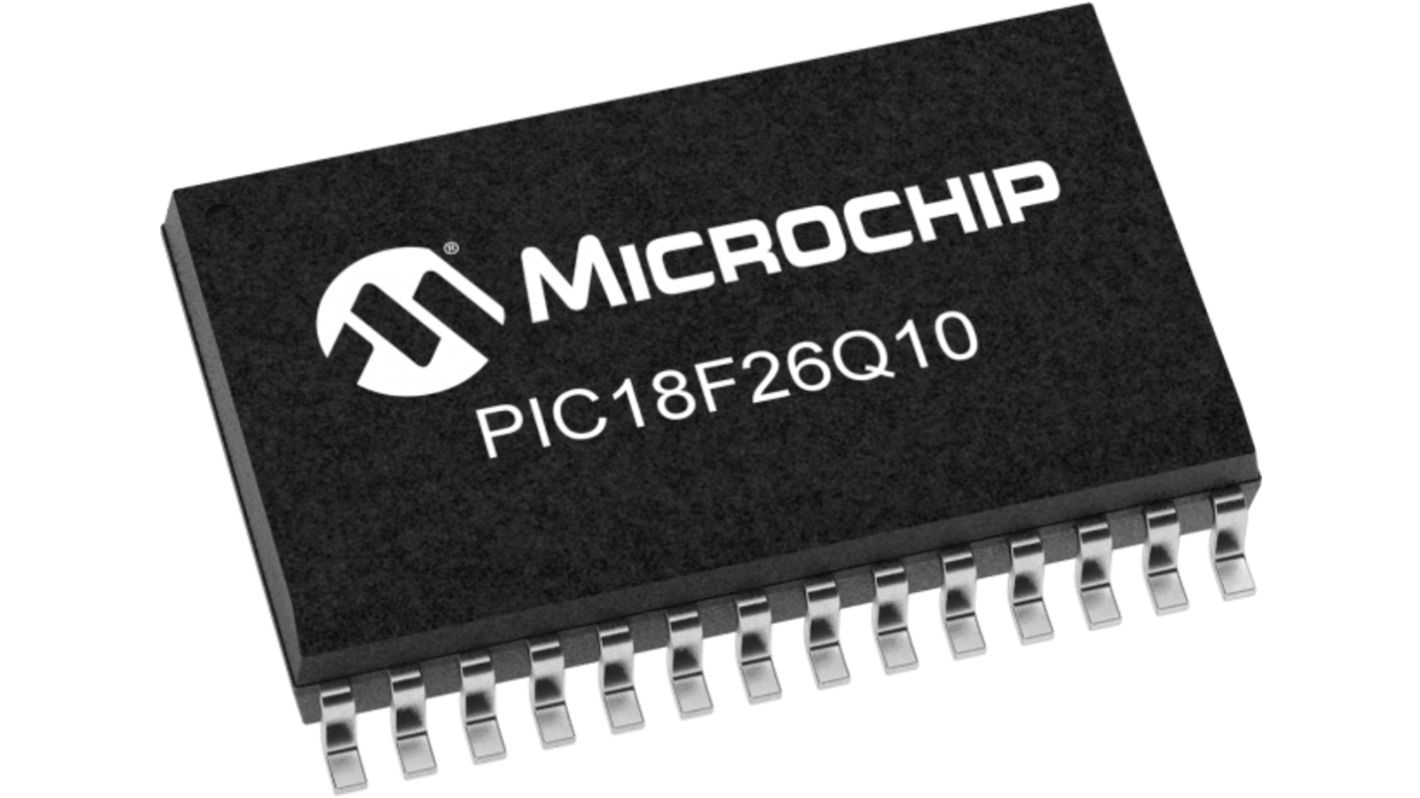

Microchip マイコン, 8ビットMCU, 64MHz, 64 kb, フラッシュ, 28-Pin SOIC

The Microchip Microcontrollers feature analogue, core independent, and communication peripherals for a wide range of general purpose and low-power applications. These microcontroller devices are equipped with a 10-bit ADC with Computation (ADCC) automating Capacitive Voltage Divider (CVD) techniques for advanced touch sensing, averaging, filtering, oversampling and performing automatic threshold comparisons. They also offer a set of core independent peripherals such as Complementary Waveform Generator (CWG), Windowed Watchdog Timer (WWDT), Cyclic Redundancy Check (CRC)/Memory Scan, Zero-Cross Detect (ZCD), Configurable Logic Cell (CLC), and Peripheral Pin Select (PPS), providing increased design flexibility and lower system cost.

C Compiler optimized RISC architecture
Programmable 2 level interrupt priority
31 level deep hardware stack
Three 8 bit timers with hardware limit timer
Four 16 bit timers
Low current power on reset
Power up timer
Brown out reset
Low power BOR option
