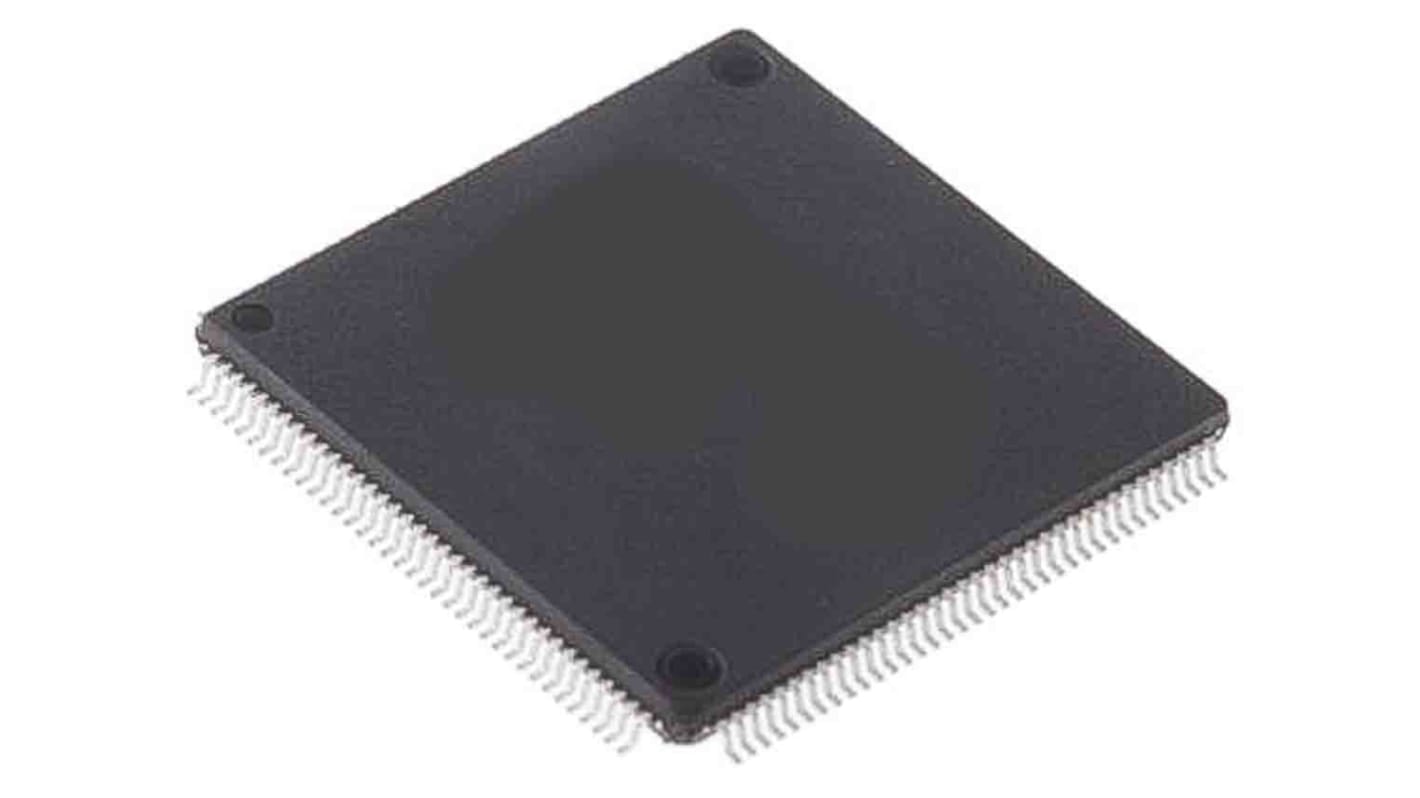

- RS品番:
- 189-3861
- メーカー型番:
- STM32F745ZET6
- メーカー/ブランド名:
- STMicroelectronics
240 海外在庫あり - 通常4営業日でお届け
単価: 購入単位は60 個
¥1,948.733
(税抜)
¥2,143.606
(税込)
個 | 単価 | 購入単位毎合計* |
60 - 240 | ¥1,948.733 | ¥116,923.98 |
300 - 540 | ¥1,909.767 | ¥114,586.02 |
600 - 1440 | ¥1,871.567 | ¥112,294.02 |
1500 - 2940 | ¥1,834.133 | ¥110,047.98 |
3000 + | ¥1,797.45 | ¥107,847.00 |
* 購入単位ごとの価格 |
- RS品番:
- 189-3861
- メーカー型番:
- STM32F745ZET6
- メーカー/ブランド名:
- STMicroelectronics
データシート
その他
詳細情報
The STM32F745xx and STM32F746xx devices are based on the high-performance ARM®Cortex®-M7 32-bit RISC core operating at up to 216 MHz frequency. The Cortex®-M7 core features a single floating point unit (SFPU) precision which supports all ARM®single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances the application security. The STM32F745xx and STM32F746xx devices incorporate high-speed embedded memories with a Flash memory up to 1 Mbyte, 320 Kbytes of SRAM (including 64 Kbytes of Data TCM RAM for critical real-time data), 16 Kbytes of instruction TCM RAM (for critical real-time routines), 4 Kbytes of backup SRAM available in the lowest power modes, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses, a 32-bit multi-AHB bus matrix and a multi layer AXI interconnect supporting internal and external memories access. All the devices offer three 12-bit ADCs, two DACs, a low-power RTC, thirteen general-purpose 16-bit timers including two PWM timers for motor control and one low-power timer available in Stop mode, two general-purpose 32-bit timers, a true random number generator (RNG). They also feature standard and advanced communication interfaces.
受注確定後にお客様専用製品として商品化されるため、発注後のキャンセル・返品はお受けできません。
仕様
特性 | |
---|---|
ファミリー名 | STM32F7 |
パッケージタイプ | LQFP |
実装タイプ | 表面実装 |
ピン数 | 144 |
デバイスコア | ARM Cortex M7 |
データバス幅 | 32bit |
プログラムメモリサイズ | 512 kB |
最大周波数 | 216MHz |
RAMサイズ | 320 kB |
USBチャンネル | 2 |
SPIチャンネル数 | 6 |
CANチャンネル数 | 2 |
I2Cチャンネル数 | 4 |
標準動作供給電圧 | 1.7 → 3.6 V |
UARTチャンネル数 | 4 |
USARTチャネルの数 | 4 |
最大イーサネットチャンネル数 | 1 |
高さ | 1.45mm |
動作温度 Min | -40 °C |
寸法 | 20.2 x 20.2 x 1.45mm |
幅 | 20.2mm |
インストラクションセットアーキテクチャ | RISC |
ADCユニット数 | 3 |
プログラムメモリタイプ | フラッシュ |
動作温度 Max | +85 °C |
長さ | 20.2mm |
イーサネットチャンネル数 | 1 |
ADC数 | 24 x 12 bit |
