- RS品番:
- 179-3961
- メーカー型番:

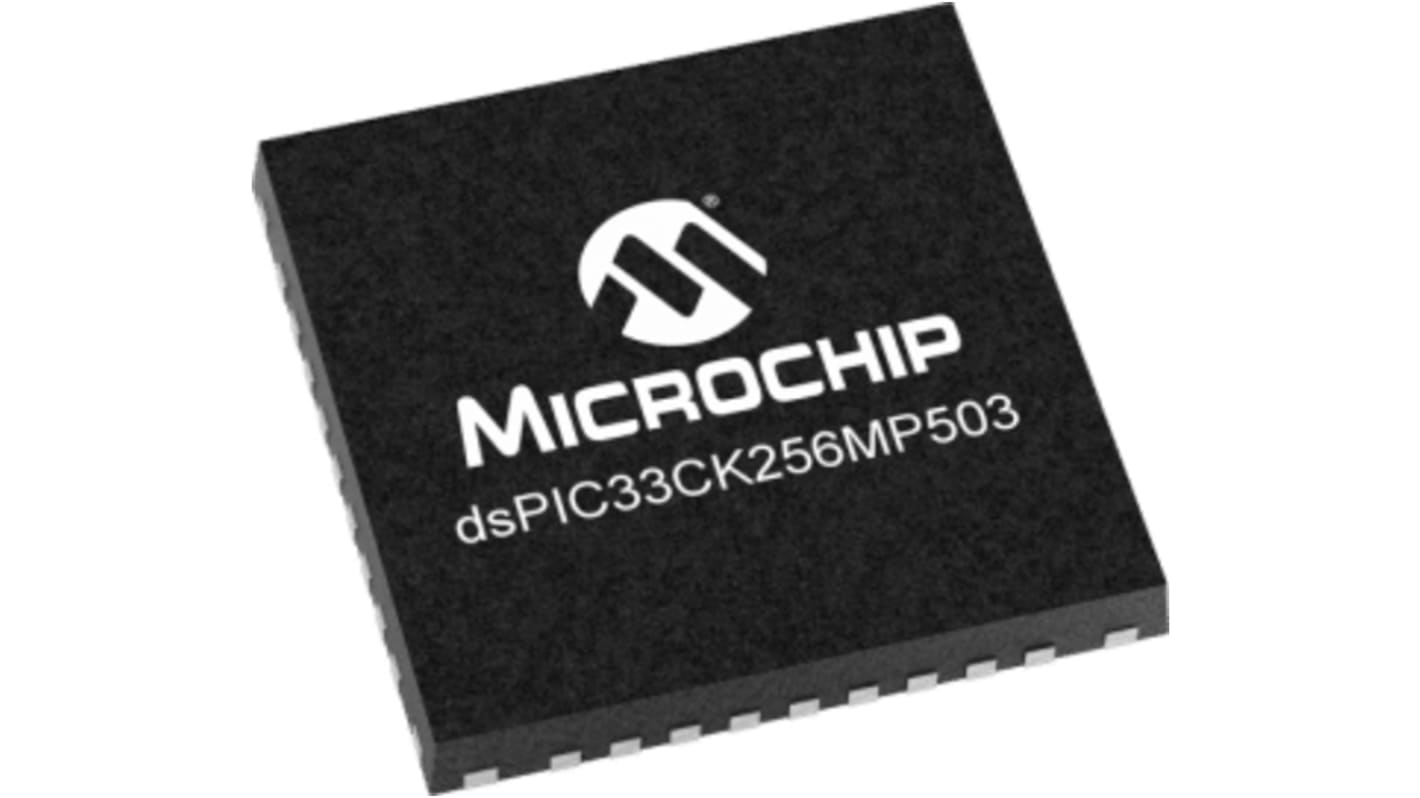

- DSPIC33CK256MP503-I/M5
- メーカー/ブランド名:
- Microchip
在庫切れ
追加されました
単価: 購入単位は73個
¥477.082
(税抜)
¥524.79
(税込)
個 | 単価 | 1チューブあたりの価格* |
73 - 73 | ¥477.082 | ¥34,826.986 |
146 + | ¥465.726 | ¥33,997.998 |
* 購入単位ごとの価格 |
- RS品番:
- 179-3961
- メーカー型番:
- DSPIC33CK256MP503-I/M5
- メーカー/ブランド名:
- Microchip
データシート
その他
- COO(原産国):
- US
詳細情報
Microchips dsPIC33CK family of digital signal controllers (DSCs) features a single 100 MIPS 16-bit dsPIC® DSC core with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation and provide extended motor life. They can be used to control BLDC, PMSM, ACIM, SR and stepper motors.
3.0V to 3.6V, -40ºC to +125ºC, DC to 100 MIPS
dsPIC33CK DSC Core:
Modified Harvard architecture with 16-bit data and 24-bit instructions
Code efficient (C and Assembly) CPU architecture designed for real-time applications
16 16-bit working registers
4 sets of interrupt context saving registers, including ACC and CPU status for fast interrupt handling
Single-cycle, mixed-sign 32-bit MUL
Fast 6-cycle hardware 32/16 and 16/16 DIV
Dual 40-bit fixed point Accumulators (ACC) for DSP operations
Single-cycle MAC/MPY with dual data fetch and result write-back
Zero overhead looping support
dsPIC33CK DSC Core:
Modified Harvard architecture with 16-bit data and 24-bit instructions
Code efficient (C and Assembly) CPU architecture designed for real-time applications
16 16-bit working registers
4 sets of interrupt context saving registers, including ACC and CPU status for fast interrupt handling
Single-cycle, mixed-sign 32-bit MUL
Fast 6-cycle hardware 32/16 and 16/16 DIV
Dual 40-bit fixed point Accumulators (ACC) for DSP operations
Single-cycle MAC/MPY with dual data fetch and result write-back
Zero overhead looping support
仕様
特性 | |
---|---|
ファミリー名 | dsPIC |
データバス幅 | 16bit |
最大周波数 | 100MHz |
I/O電圧 | 3 → 3.6V |
製造テクノロジー | CMOS |
実装タイプ | 表面実装 |
パッケージタイプ | UQFN |
ピン数 | 36 |
標準動作供給電圧 | 3.6 V (最大) |
寸法 | 5 x 5 x 0.55mm |
動作温度 Min | -40 °C |
動作温度 Max | +85 °C |
自動車規格 | AEC-Q100 |
