- RS Stock No.:
- 536-900
- Mfr. Part No.:
- MKS3PI-5 DC12
- Brand:
- Omron
9 海外在庫あり - 通常4営業日でお届け
Price 購入単位は 個
¥1,380.00
(exc. VAT)
¥1,518.00
(inc. VAT)
Units | Per unit |
---|---|
1 + | ¥1,380.00 |
- RS Stock No.:
- 536-900
- Mfr. Part No.:
- MKS3PI-5 DC12
- Brand:
- Omron
Technical Reference
Legislation and Compliance
Product Details

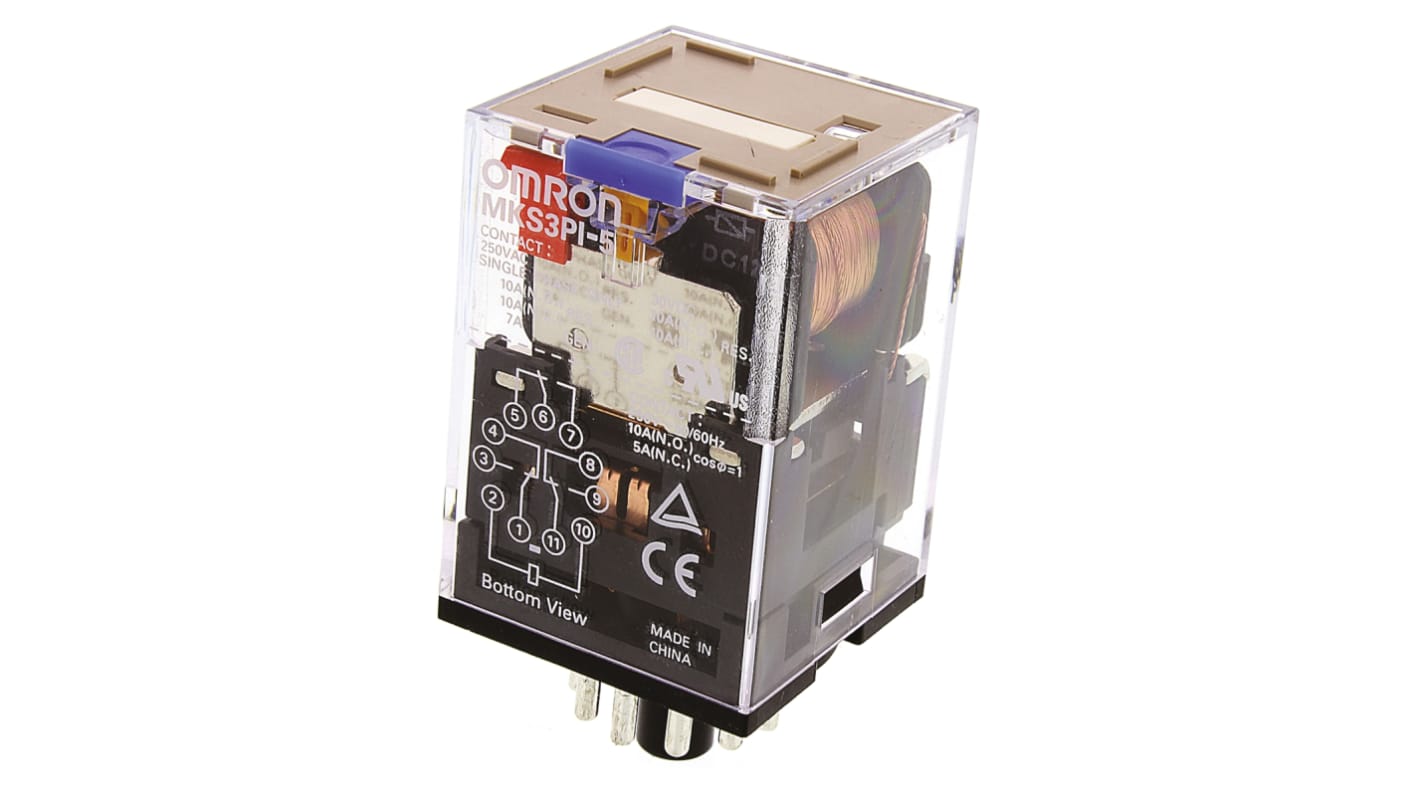

General Purpose Relays, MKS Series
All units have a Mechanical indicator and lockable test button (with nameplate)
Units with a "-5" in the Manufacturer Part Number have non-standard connections, refer to datasheet
Contact rating: 10A at 30Vdc/250Vac
Contact material: AgSnIn
Operating temperature: -40 → +60 °C
Units with a "-5" in the Manufacturer Part Number have non-standard connections, refer to datasheet
Contact rating: 10A at 30Vdc/250Vac
Contact material: AgSnIn
Operating temperature: -40 → +60 °C
備考
When Relays are mounted on the PF083A-E or PF113A-E, the maximum carrying current is 9 A
認可
UL, TUV (IEC), CSA
注意
・本製品は材料や部材入手難のため納期が不安定になっています。
Specifications
sdjkfsjkd | Value |
---|---|
コイル電圧 | 12V dc |
接点構成 | 3PDT |
取り付けタイプ | 基板実装 |
スイッチング電流 | 10A |
極数 | 3 |
ラッチ | なし |
ターミナルタイプ | プラグイン |
最大スイッチング電圧 AC | 250V ac |
最大スイッチング電圧 DC | 250V dc |
長さ | 34.5mm |
コイル抵抗 | 107Ω |
シリーズ | MKS |
接点材質 | 銀合金 |
高さ | 53.3mm |
動作温度 Max | +60°C |
動作温度 Min | -40°C |
奥行き | 34.5mm |
最大スイッチング電源 DC | 300 W |
最大スイッチング電源 AC | 2.5 kVA |
アプリケーションタイプ | 多目的 |
