- RS品番:
- 178-4351
- メーカー型番:

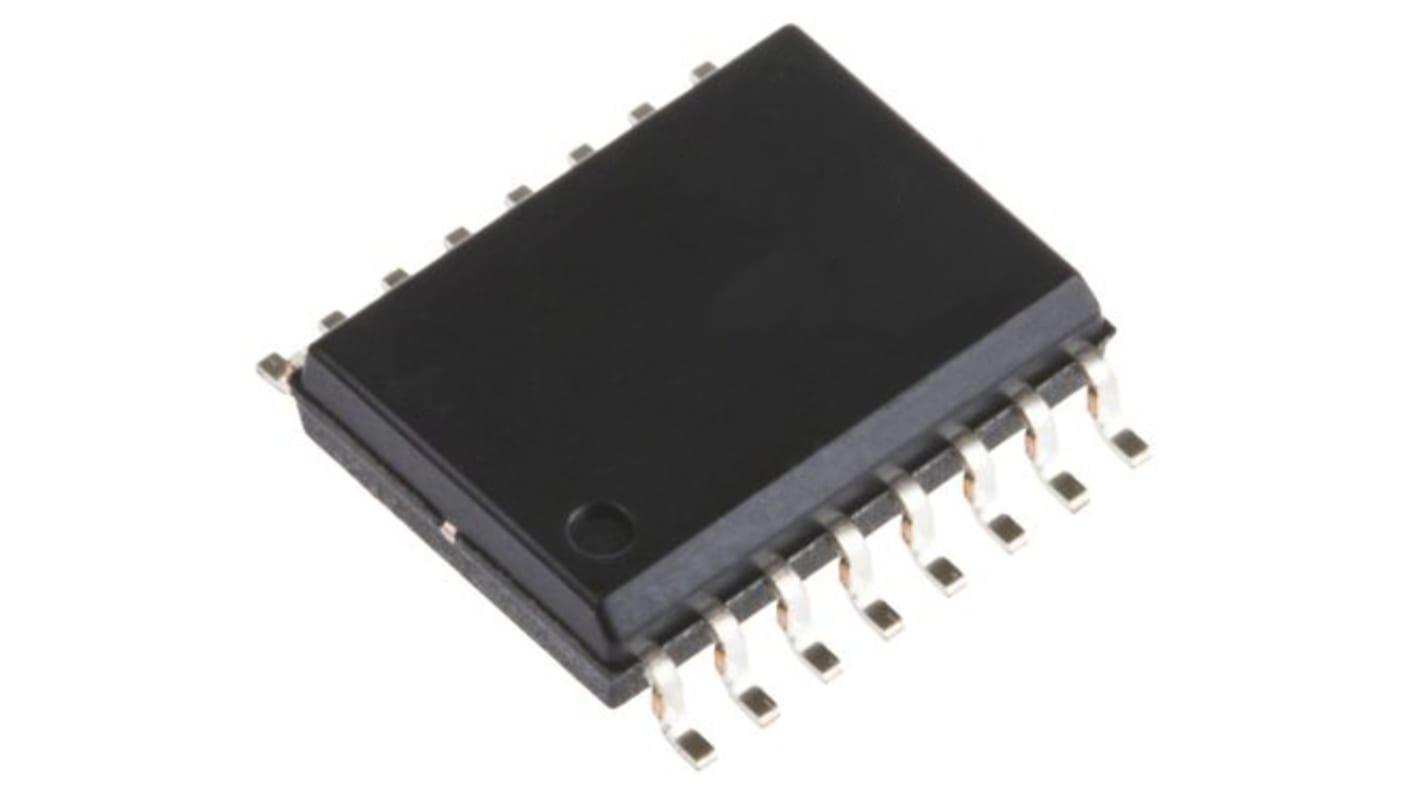

- NCP1399APDR2G
- メーカー/ブランド名:
- onsemi
この製品はご注文いただけません
大変申し訳ありませんが、在庫切れのため現在ご注文いただけません。
追加されました
単価: 購入単位は2500 個
¥154.832
(税抜)
¥170.315
(税込)
個 | 単価 | 購入単位毎合計* |
2500 - 2500 | ¥154.832 | ¥387,080.00 |
5000 - 22500 | ¥150.21 | ¥375,525.00 |
25000 - 35000 | ¥142.199 | ¥355,497.50 |
37500 - 47500 | ¥138.194 | ¥345,485.00 |
50000 + | ¥134.188 | ¥335,470.00 |
* 購入単位ごとの価格 |
- RS品番:
- 178-4351
- メーカー型番:
- NCP1399APDR2G
- メーカー/ブランド名:
- onsemi
その他
- COO(原産国):
- PH
詳細情報
The NCP1399 is a high performance current mode controller for half bridge resonant converters. This controller implements 600 V gate drivers, simplifying layout and reducing external component count. The built−in Brown−Out input function eases implementation of the controller in all applications. In applications where a PFC front stage is needed, the NCP1399 features a dedicated output to drive the PFC controller. This feature together with dedicated skip mode technique further improves light load efficiency of the whole application.
Optimize for physical size or highest efficiency
Built-in safety protection, improved transient response
Improved efficiency
Applications:
High power AC/DC adapters for notebooks
Offline battery chargers
Industrial and medical power sources
Computing power supplies
Built-in safety protection, improved transient response
Improved efficiency
Applications:
High power AC/DC adapters for notebooks
Offline battery chargers
Industrial and medical power sources
Computing power supplies
仕様
特性 | |
---|---|
最大スイッチング周波数 | 750 kHz |
出力電流 | 0.5 A 、 1 A |
コントロール方法 | 電流 |
実装タイプ | 表面実装 |
降下時間 | 50ns |
上昇時間 | 80ns |
パッケージタイプ | SOIC |
トポロジー | 共振 |
ピン数 | 16 |
寸法 | 10 x 3.9 x 1.75mm |
最大デューティサイクル | 50% |
PWM コントローラタイプ | 電流モード |
長さ | 10mm |
幅 | 3.9mm |
高さ | 1.75mm |
動作供給電圧 Max | 20 V |
動作温度 Max | +150 °C |
動作温度 Min | -55 °C |
