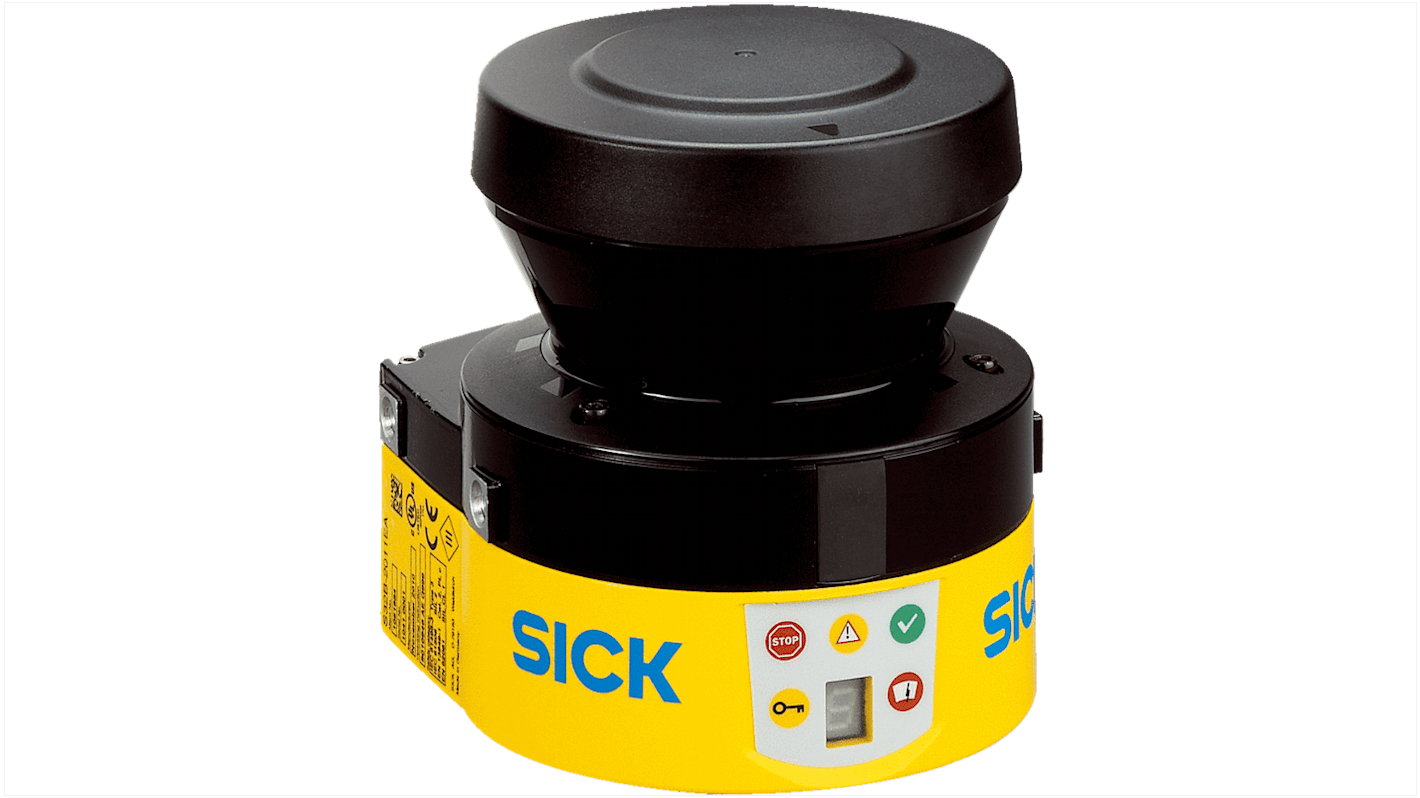

SICK S32B Series Laser Scanner Safety Laser Scanner, 30 m Max Range
- N° de stock RS:
- 285-4244
- Référence fabricant:
- S32B-2011EA / 1051884
- Fabricant:
- SICK
Sous-total (1 unité)*
4 514,71 €
(TVA exclue)
5 462,80 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 09 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 4 514,71 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 285-4244
- Référence fabricant:
- S32B-2011EA / 1051884
- Fabricant:
- SICK
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | SICK | |
| Product Type | Laser Scanner | |
| Series | S32B | |
| Component Type | Safety Laser Scanner | |
| Maximum Scanning Distance | 30m | |
| Minimum Scanning Distance | 2m | |
| Safety Type | 3 | |
| Standards/Approvals | d | |
| Maximum Response Time | 80ms | |
| Terminal Type | Cable | |
| Hazardous Area Certification | No | |
| Protective Height | 2m | |
| Width | 102mm | |
| Length | 105mm | |
| Peak Wavelength | 905nm | |
| Height | 116mm | |
| Sélectionner tout | ||
|---|---|---|
Marque SICK | ||
Product Type Laser Scanner | ||
Series S32B | ||
Component Type Safety Laser Scanner | ||
Maximum Scanning Distance 30m | ||
Minimum Scanning Distance 2m | ||
Safety Type 3 | ||
Standards/Approvals d | ||
Maximum Response Time 80ms | ||
Terminal Type Cable | ||
Hazardous Area Certification No | ||
Protective Height 2m | ||
Width 102mm | ||
Length 105mm | ||
Peak Wavelength 905nm | ||
Height 116mm | ||
- Pays d'origine :
- DE
Overview
The S300 Mini Remote offers the ultimate in functionality within an ultra-compact design. With 16 triple field sets, the S300 Mini Remote is very flexible, so it is ideal for small automated guided vehicles (AGVs) or service robots. The triple field function enables a protective field and two warning fields to be operated at the same time. This minimizes downtimes and brake wear. The S300 Mini Remote has an internal interface (EFI) for safe device communication.
This allows the realization of advanced system solutions, for example with the Flexi Soft safety controller. This enables the protection of automated guided vehicles in the front and rear. CDS (Configuration & Diagnostic Software) or the Flexi Soft Designer can be used to define protective and warning fields in a convenient and standardized way on a PC or laptop.
At a glance
Can only be used in EFI system network, e.g., with a Flexi Soft safety controller or another safety laser scanner
Ultra-compact design
2 m or 3 m protective field range
270° scan angle
Up to 16 switchable field sets
Selectable resolution for hand, leg or body detection
Extended system solutions in combination with Flexi Soft safety controller
Your Benefit
Simple integration due to ultracompact design
Easy installation, commissioning and maintenance for stationary and mobile applications
Unbeatable cost effectiveness – 270° scanning angle allows complete application protection with only two scanners
Variety of field sets guarantees safety and productivity when protecting vehicles or moving machine parts
Easy modular expansions, simple cabling and additional functions using SICK safety controllers with EFI
Decades of proven safety technology guarantee maximum reliability and availability – even under difficult conditions
Simple alignment and safe operation in vertical mode
Applications
Fields of applications
Protection of automatically guided vehicles
Protection of automatically guided vehicles with protective field switching
Protection of automatically guided carts
Protection of large automatically guided vehicles
Protection of transfe
