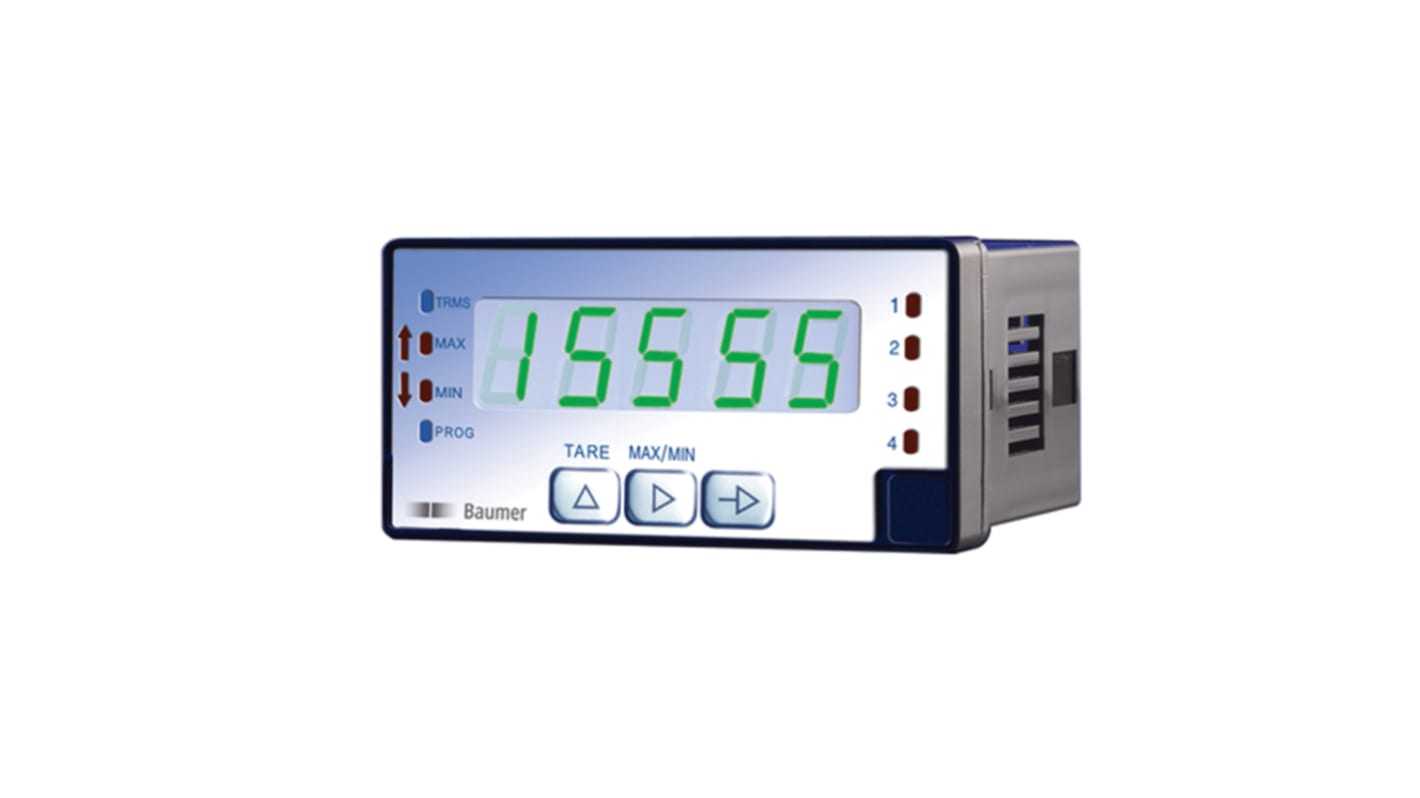

Baumer デジタルパネルメータ LED PA418シリーズ

For standard signals, temperature, strain gauge.

Inputs: Voltage ±10 V / current ±20 mA / thermocouples J,K,T,Pt100 / strain gauge / potentiometer
Programmable characteristic curve with 11 control points
Three programmable control inputs
Min, Max, Tare functions
Display stabilization filter
Analogue output 4…20 mA or 0…10 V
Interface RS232 or RS485
LED display, 5-digits, 3 Colours
DIN housing 96 x 48 mm
