- RS品番:
- 230-7914
- メーカー型番:
- DMS-20PC-0/5-24RL-C
- メーカー/ブランド名:
- Murata
2 海外在庫あり - 通常4営業日でお届け
追加されました
単価: 購入単位は 個
¥11,955.00
(税抜)
¥13,150.50
(税込)
個 | 単価 |
1 - 2 | ¥11,955.00 |
3 - 5 | ¥11,655.00 |
6 + | ¥11,476.00 |
- RS品番:
- 230-7914
- メーカー型番:
- DMS-20PC-0/5-24RL-C
- メーカー/ブランド名:
- Murata
その他
RoHSステータス: 該当なし
詳細情報

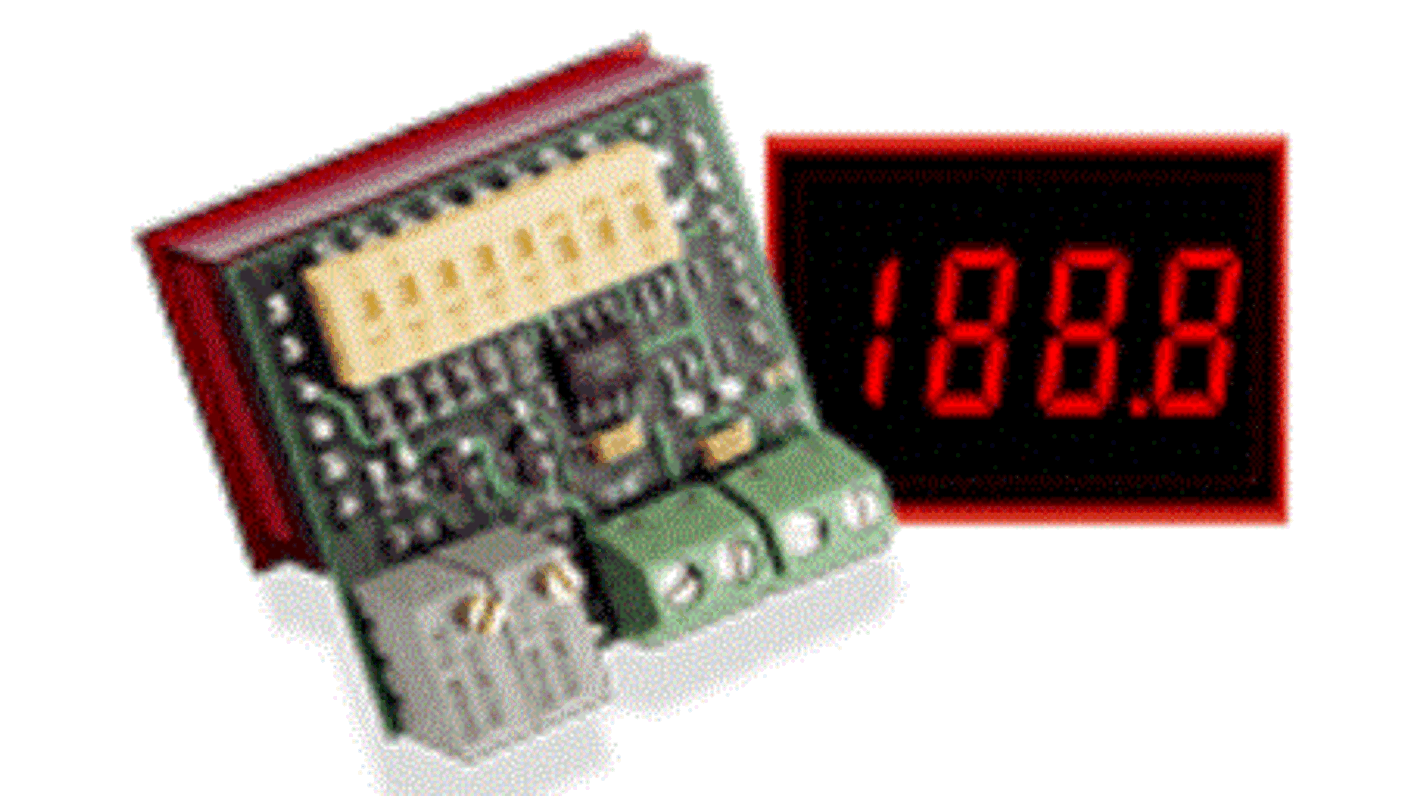

The Murata DMS-20PC-0/5 Series are the world's smallest, full-featured, 0-5V input process control monitors. Their large, easy-to-read, 0.37"/9.4mm LED displays are available in a choice of 4 LED colour/intensity options: standard red, standard green, sup
Accepts 0-5V and 0-10V inputs
Large, easy-to-read, 0.37"/9.4mm LED display
Choice of 5 LED power/colour options
High input impedance, 100kΩ
+5V to +40V model draws 9mA typ.
Miniature size: 1.38" x 1.25" x 0.95"
High-quality, 20-turn, span (gain) and zero
Large, easy-to-read, 0.37"/9.4mm LED display
Choice of 5 LED power/colour options
High input impedance, 100kΩ
+5V to +40V model draws 9mA typ.
Miniature size: 1.38" x 1.25" x 0.95"
High-quality, 20-turn, span (gain) and zero
受注確定後にお客様専用製品として商品化されるため、発注後のキャンセル・返品はお受けできません。
仕様
特性 | |
---|---|
特性測定 | DC Powered |
ディスプレイのタイプ | LED |
高さ | 32mm |
幅 | 35.1mm |
奥行き | 24mm |
表示桁数 | 3.5 |
