- RS品番:
- 668-4061
- メーカー型番:
- M850-MP1
- メーカー/ブランド名:
- HOBUT
23 海外在庫あり - 通常4営業日でお届け
追加されました
単価: 購入単位は 個
¥18,320.00
(税抜)
¥20,152.00
(税込)
個 | 単価 |
1 - 4 | ¥18,320.00 |
5 + | ¥17,771.00 |
- RS品番:
- 668-4061
- メーカー型番:
- M850-MP1
- メーカー/ブランド名:
- HOBUT
その他
- COO(原産国):
- GB
詳細情報

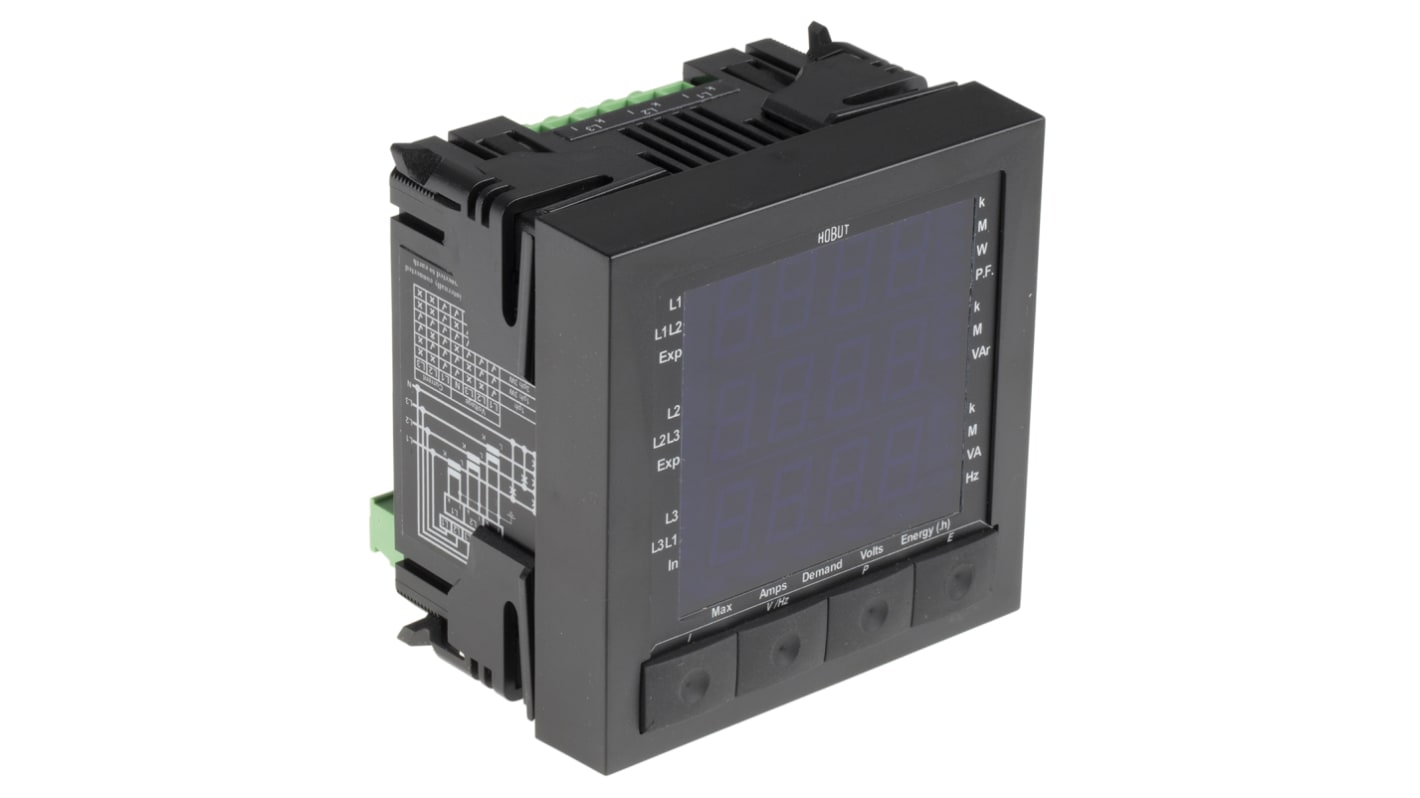

HOBUT Multi-Function Meter
The HOBUT Multi-Function meter is a multifunction, easy to use universal LCD power indicator that features 96mm x 96mm moulded cases and selectable 3-colour backlight LCD screens. It is easy to use and features user-programmable CT and VT ratios and can be used on any single or 3-phase system with any input voltage without reprogramming. This multifunction meter measures current, energy, frequency, power and voltage.
Note:
Both RS485 output 668-4070 (Modbus protocol) and pulsed output 668-4073 (for Wh or VArh) are plug-in options
Note:
Both RS485 output 668-4070 (Modbus protocol) and pulsed output 668-4073 (for Wh or VArh) are plug-in options
Features and Benefits
1A or 5A CT
AC or DC AUX
Cost effective
Current transformer ratio
Cut-out height is 96mm
Cut-out width is 96mm
Depth is 82mm
Input voltage ranges between 28V and 570V
Number of digits are four
Operating temperature ranges between 0°C and 60°C
Security code access for programming
Selectable screen colour
Voltage transformer ratio
AC or DC AUX
Cost effective
Current transformer ratio
Cut-out height is 96mm
Cut-out width is 96mm
Depth is 82mm
Input voltage ranges between 28V and 570V
Number of digits are four
Operating temperature ranges between 0°C and 60°C
Security code access for programming
Selectable screen colour
Voltage transformer ratio
Applications
Building management systems
Gensets
Low, medium and high voltage control panels
Power management
Gensets
Low, medium and high voltage control panels
Power management
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
CE certified
BS EN 61340-5-1:2007
CE certified
仕様
特性 | |
---|---|
特性測定 | Current, Frequency, Power, Voltage |
ディスプレイのタイプ | LED |
高さ | 96mm |
幅 | 96mm |
表示桁数 | 4 |
奥行き | 82mm |
文字の高さ寸法 | 14.2 mm |
動作温度 Min | 0°C |
動作温度 Max | +60°C |
シリーズ | M850 |
