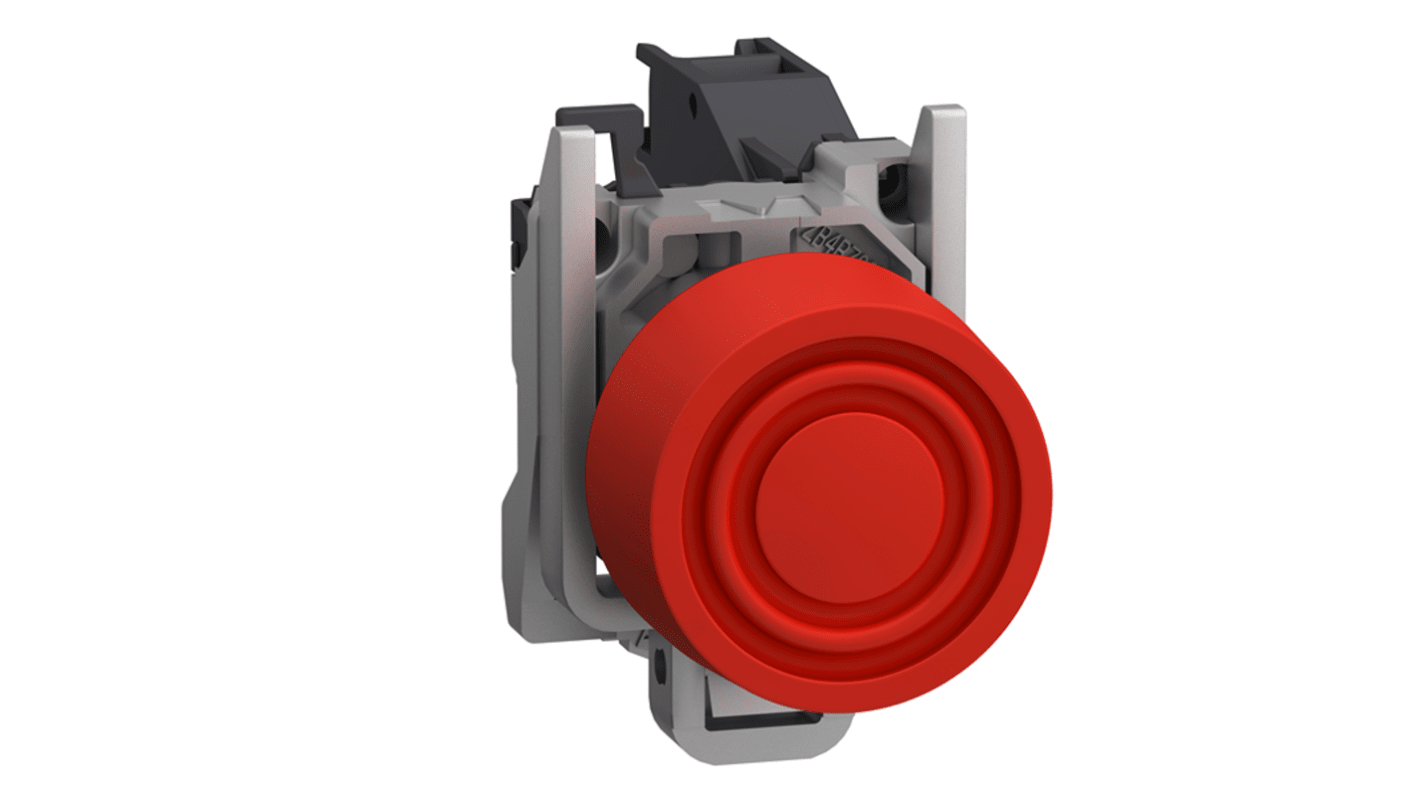

Schneider Electric Harmony XB4 Series Push Button Switch, Spring Return, Through Hole, 22 mm Cutout, 1 NC, Red LED,
- RS-stocknr.:
- 340-739
- Fabrikantnummer:
- XB4BPS42GEX
- Fabrikant:
- Schneider Electric
Subtotaal (1 eenheid)*
€ 147,34
(excl. BTW)
€ 178,28
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 28 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 147,34 |
*prijsindicatie
- RS-stocknr.:
- 340-739
- Fabrikantnummer:
- XB4BPS42GEX
- Fabrikant:
- Schneider Electric
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Schneider Electric | |
| Product Type | Push Button Switch | |
| Actuator Colour | Red | |
| Switch Operation | Spring Return | |
| Illuminated | No | |
| Series | Harmony XB4 | |
| Panel Cutout Size | 22 mm | |
| Mount Type | Through Hole | |
| Contact Configuration | 1 NC | |
| LED Colour | Red | |
| Terminal Type | Screw | |
| IP Rating | IP66 | |
| Contact AC Voltage | 415V ac | |
| Contact DC Voltage | 415V dc | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 75°C | |
| Height | 30mm | |
| Switch Contact Current | 6A | |
| Standards/Approvals | ANSI/ISA 12.12.01, CSA C22.2 No 213, EN/IEC 60079-1:2009, IEC 60079-0:2009, IEC 60079-31:2009, IEC 60079-7:2009, UL 60079-0, UL 60079-1, UL 60079-31 | |
| Length | 72mm | |
| Width | 46.2mm | |
| Alles selecteren | ||
|---|---|---|
Merk Schneider Electric | ||
Product Type Push Button Switch | ||
Actuator Colour Red | ||
Switch Operation Spring Return | ||
Illuminated No | ||
Series Harmony XB4 | ||
Panel Cutout Size 22 mm | ||
Mount Type Through Hole | ||
Contact Configuration 1 NC | ||
LED Colour Red | ||
Terminal Type Screw | ||
IP Rating IP66 | ||
Contact AC Voltage 415V ac | ||
Contact DC Voltage 415V dc | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 75°C | ||
Height 30mm | ||
Switch Contact Current 6A | ||
Standards/Approvals ANSI/ISA 12.12.01, CSA C22.2 No 213, EN/IEC 60079-1:2009, IEC 60079-0:2009, IEC 60079-31:2009, IEC 60079-7:2009, UL 60079-0, UL 60079-1, UL 60079-31 | ||
Length 72mm | ||
Width 46.2mm | ||
- Land van herkomst:
- FR
Schneider Electric Harmony Series Push Button Switch, 22mm Panel Cut Out Diameter, 10A Current Rating - XB4BPS42GEX
This push button switch is designed for industrial applications, featuring a round red push button with a diameter of 22mm. The switch operates on a spring return mechanism and is capable of handling a contact current rating of 10A. Engineered for reliability, it operates effectively across a temperature range from -20°C to +75°C and is rated IP66, ensuring strong resistance against dust and water ingress.
Features & Benefits
• Compatible with a voltage rating of 415V for diverse use
• Spring return operation enhances safety by ensuring the switch resets automatically
• Constructed with a silver alloy contact material for reliable performance
• 22mm diameter makes it suitable for standard panel cut-out sizes
• Screw clamp Terminal type facilitates easy and secure installation
• Spring return operation enhances safety by ensuring the switch resets automatically
• Constructed with a silver alloy contact material for reliable performance
• 22mm diameter makes it suitable for standard panel cut-out sizes
• Screw clamp Terminal type facilitates easy and secure installation
Applications
• Can be used with control panels in industrial machinery
• Suitable for automation systems requiring sturdy actuation
• Ideal for needing a reliable NC contact switch
• Effective in environments that demand high ingress protection
• Utilised in electrical circuits where precise control operations are necessary
• Suitable for automation systems requiring sturdy actuation
• Ideal for needing a reliable NC contact switch
• Effective in environments that demand high ingress protection
• Utilised in electrical circuits where precise control operations are necessary
What is the significance of the IP66 rating for this switch?
The IP66 rating indicates complete protection against dust ingress and strong resistance to water jets, making it Ideal for harsh environments where exposure to contaminants is a concern.
Can this switch be used in outdoor applications?
Yes, the robust design and IP66 rating make it suitable for outdoor use, as it can withstand varying weather conditions without compromising functionality.
What temperature range can this switch operate in?
The switch can function effectively within a temperature range from -20°C to +75°C, accommodating various industrial settings where temperature fluctuations may occur.
How does the spring return mechanism enhance safety during operation?
The spring return mechanism ensures that the switch automatically resets to its original position after being pressed, reducing the risk of accidental continuous operation and improving user safety.
