- RS品番:
- 619-2672
- メーカー型番:
- 773100
- メーカー/ブランド名:
- Pilz
この製品はご注文いただけません
大変申し訳ありませんが、在庫切れのため現在ご注文いただけません。
追加されました
単価: 購入単位は 個
¥203,879.00
(税抜)
¥224,266.90
(税込)
個 | 単価 |
1 + | ¥203,879.00 |
- RS品番:
- 619-2672
- メーカー型番:
- 773100
- メーカー/ブランド名:
- Pilz
その他
- COO(原産国):
- DE
詳細情報

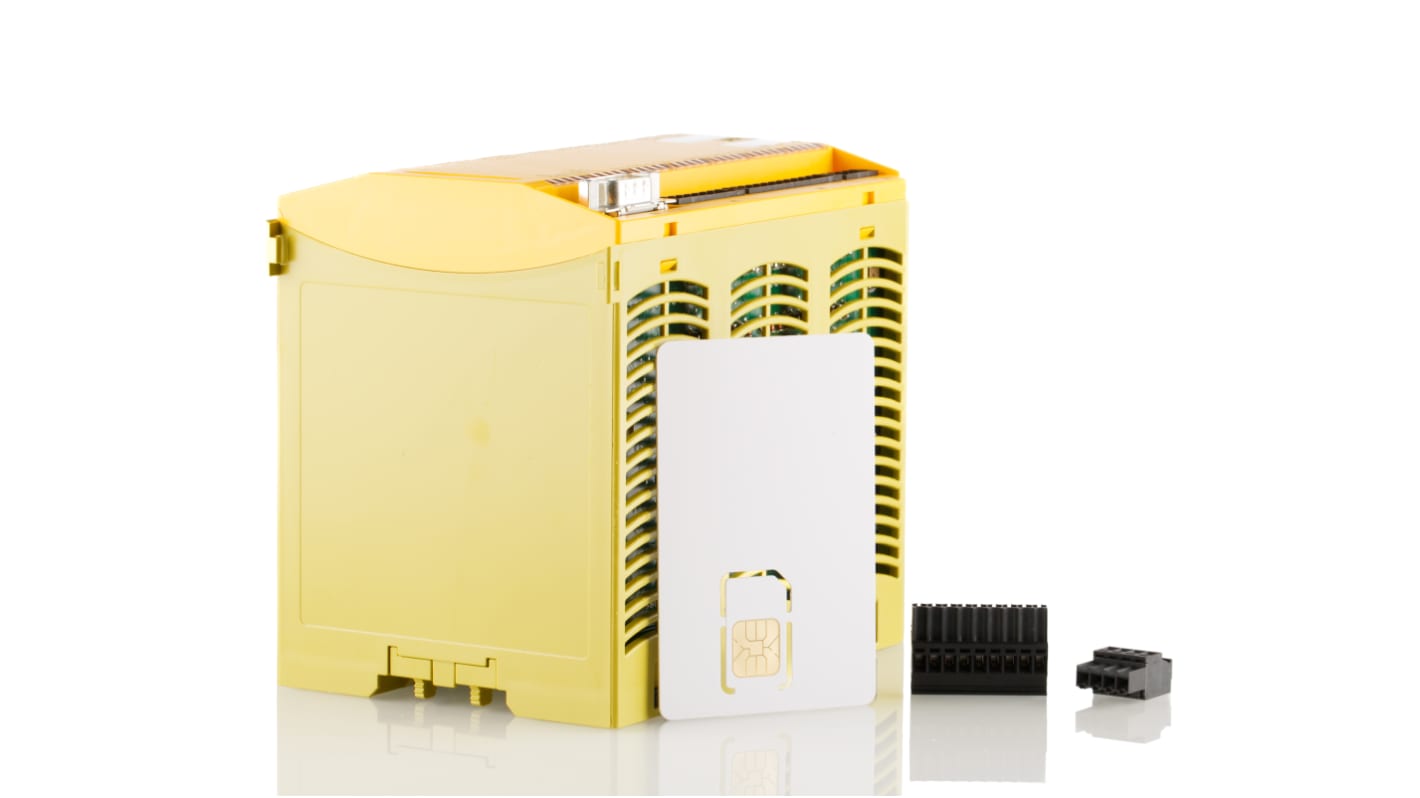

Pilz Safety Controller
The Pilz PNOZmulti series is a 20 safety inputs and 6 safety outputs safety controller. This is an innovative device with positive guided relay outputs and semiconductor outputs. The safety function remains effective in the case of a component failure. The relay contacts meet the requirements for safe separation through increased insulation. The safety outputs are tested periodically using a disconnection test.
Note
Configuration software and pre: license sold separately
Call Pilz to register, this activates the software and is used for technical queries and support from Pilz
In order to program the controller from your PC, you will need an adaptor and cable
Inclusion:
Plug: in screw terminals and 32K SIM card
Note
Configuration software and pre: license sold separately
Call Pilz to register, this activates the software and is used for technical queries and support from Pilz
In order to program the controller from your PC, you will need an adaptor and cable
Inclusion:
Plug: in screw terminals and 32K SIM card
Features and Benefits
E-STOP pushbutton
Two: hand button
Safety gate limit switch
Reset button
Light barrier
Scanner
Enable switch
PSEN – operating mode selector switch – safety mat
LED indicator for diagnostics, supply voltage, output circuits, and input circuits
Circuit is redundant with built: in self: monitoring
Maximum 8 expansion modules and 1 fieldbus module can be connected
Monitors shorts between the safety outputs
Plug: in connection terminals (either cage clamp terminal or screw terminal)
Two: hand button
Safety gate limit switch
Reset button
Light barrier
Scanner
Enable switch
PSEN – operating mode selector switch – safety mat
LED indicator for diagnostics, supply voltage, output circuits, and input circuits
Circuit is redundant with built: in self: monitoring
Maximum 8 expansion modules and 1 fieldbus module can be connected
Monitors shorts between the safety outputs
Plug: in connection terminals (either cage clamp terminal or screw terminal)
Certifications
UL listed
CCC certified
BG certified
VDE 0113Part 1
EN 60204: 1
GOST R certified
TUV certified
NFPA 79: 2002
CCC certified
BG certified
VDE 0113Part 1
EN 60204: 1
GOST R certified
TUV certified
NFPA 79: 2002
認可
UL, CCC, GOST R, TUV, NFPA 79:2002, UL508, OSHA
仕様
特性 | |
---|---|
シリーズ | PNOZmulti |
セーフティ入力数 | 20 |
セーフティ出力数 | 6 |
安全カテゴリ | EN60204-1、VDE0113 |
SIL | SIL 3 |
電源電圧 | 24 V dc |
コンタクトの定格電流 | 6 A |
コンタクトの定格電圧 | 24 V dc、240 V ac |
接続方式 | ケージクランプ、ねじ |
IP保護等級 | IP20 |
幅 | 135mm |
長さ | 94mm |
寸法 | 94 x 135 x 121 mm |
奥行き | 121mm |
