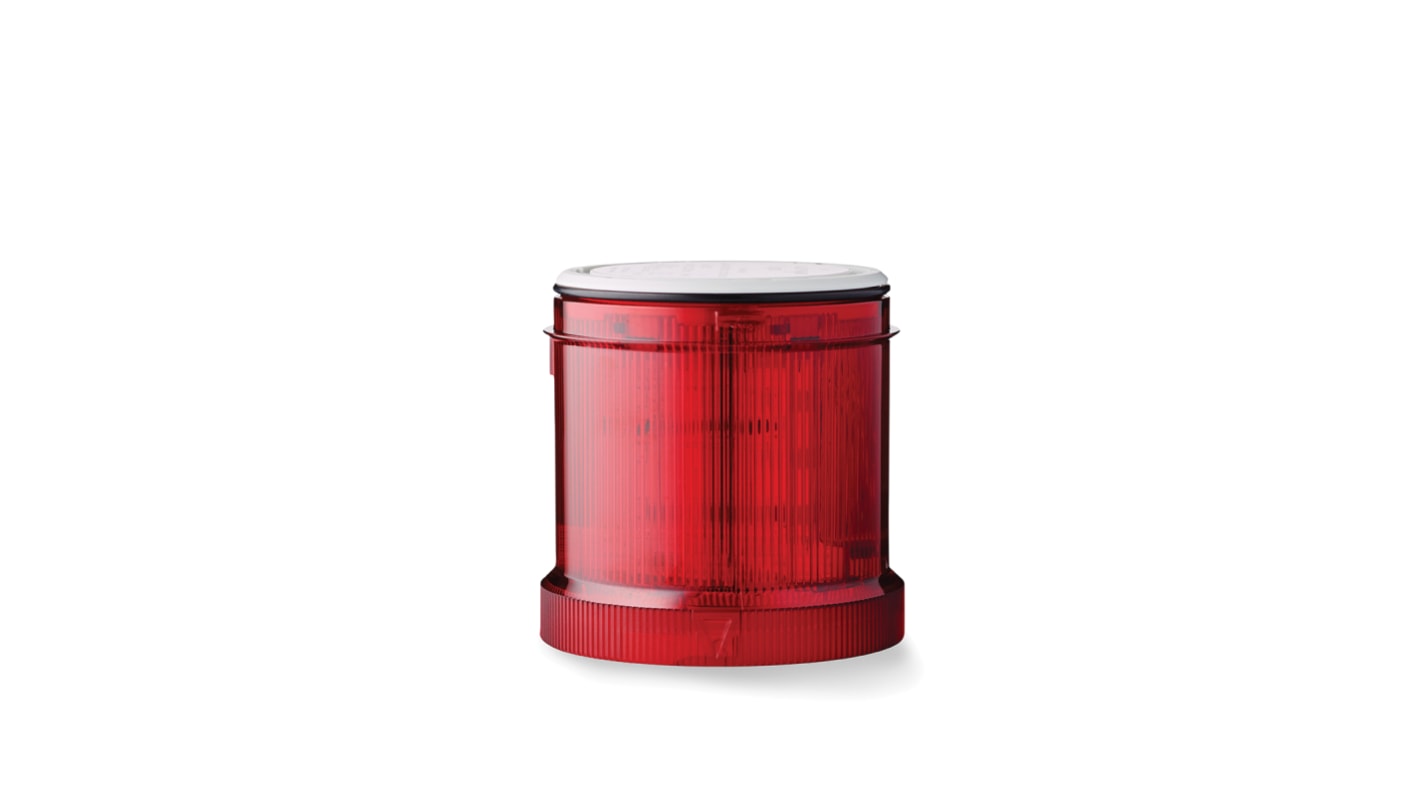

AUER Signal XDF Series Red Strobe Effect Beacon Module, LED Bulb 24V ac/dc, AC/DC, IP66
- RS-stocknr.:
- 135-0628
- Artikelnummer Distrelec:
- 302-56-916
- Fabrikantnummer:
- 900032405
- Fabrikant:
- AUER Signal
Subtotaal (1 eenheid)*
€ 60,64
(excl. BTW)
€ 73,37
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 1 stuk(s) vanaf 31 augustus 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 60,64 |
*prijsindicatie
- RS-stocknr.:
- 135-0628
- Artikelnummer Distrelec:
- 302-56-916
- Fabrikantnummer:
- 900032405
- Fabrikant:
- AUER Signal
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | AUER Signal | |
| Product Type | Beacon Module | |
| Series | XDF | |
| Component Type | Beacon | |
| Multifunction | No | |
| Current Type | AC/DC | |
| Light Effect | Strobe | |
| Mount Type | Base | |
| Current Consumption | 3A | |
| Lens Colour | Red | |
| Lamp Included | Yes | |
| Bulb Type | LED | |
| Terminal Type | Snap-In | |
| Maximum Supply Voltage | 24V ac/dc | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CE | |
| Height | 74mm | |
| IP Rating | IP66 | |
| Hazardous Area Certification | No | |
| Base Diameter | 70mm | |
| Housing Colour | Black | |
| Alles selecteren | ||
|---|---|---|
Merk AUER Signal | ||
Product Type Beacon Module | ||
Series XDF | ||
Component Type Beacon | ||
Multifunction No | ||
Current Type AC/DC | ||
Light Effect Strobe | ||
Mount Type Base | ||
Current Consumption 3A | ||
Lens Colour Red | ||
Lamp Included Yes | ||
Bulb Type LED | ||
Terminal Type Snap-In | ||
Maximum Supply Voltage 24V ac/dc | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CE | ||
Height 74mm | ||
IP Rating IP66 | ||
Hazardous Area Certification No | ||
Base Diameter 70mm | ||
Housing Colour Black | ||
- Land van herkomst:
- AT
Auer ECOmodul70 Signal Tower - 70 mm
Auer ECOmodul70 professional range of signal towers and modular tower components. The ECOmodul70 range features a 70 mm diameter and is suitable for a variety applications.
Features and Benefits
Modular signal towers for universal applications
Maintenance free LED
Easy to operate connection technique
Vibration proof
Comprehensive range of mounting options including quick mount solutions
High ingress protection IP66 certified to UL type 4/4X/13
Complete range of modules available
- LED steady light
- LED flashing light
- LED strobe light (single flash)
- LED multi-strobe light (multi-flash)
- Piezo buzzer
