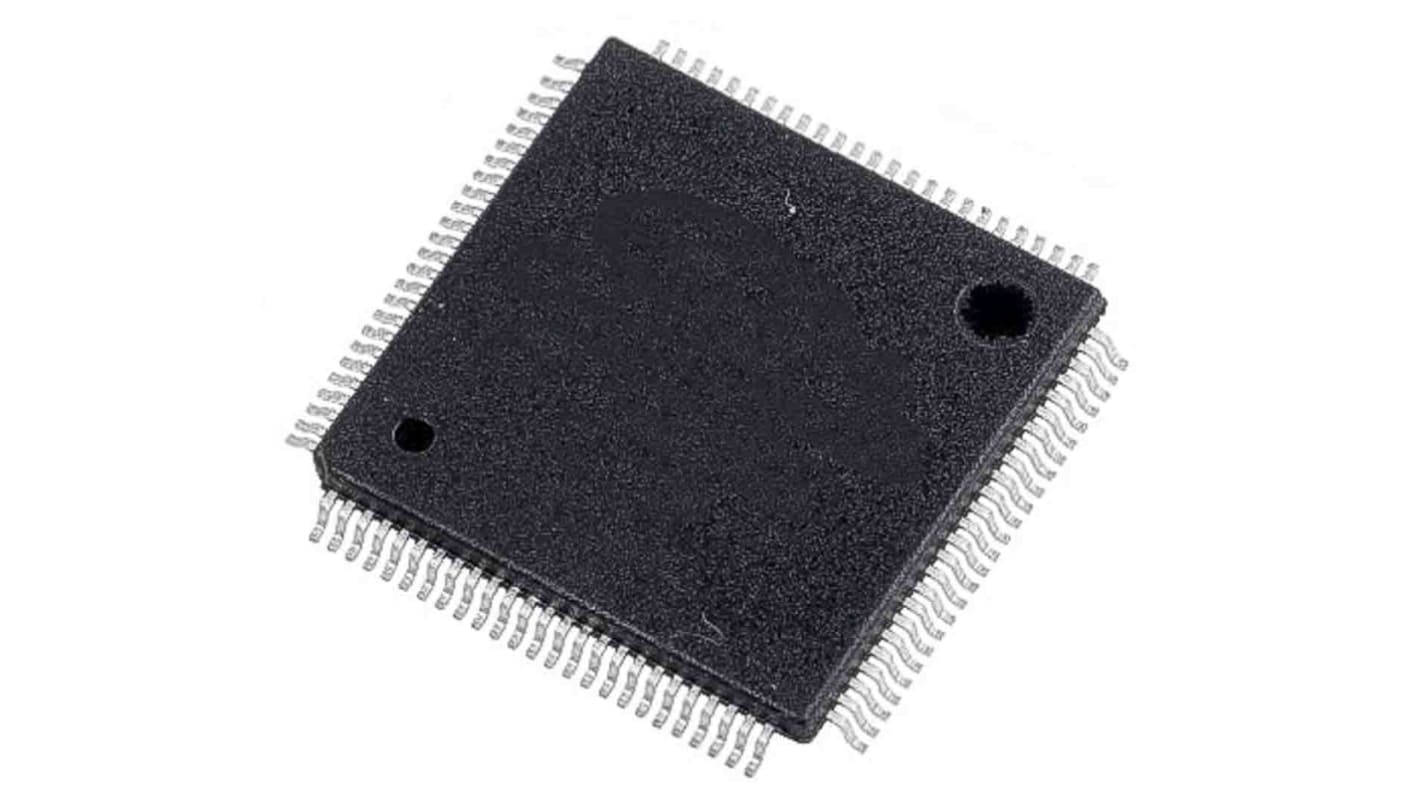

- RS品番:
- 189-3852
- メーカー型番:
- STM32F415VGT6
- メーカー/ブランド名:
- STMicroelectronics
一時的な在庫切れ - 2024/12/03に入荷し、その後4営業日でお届け予定
追加されました
単価: 購入単位は90 個
¥1,933.178
(税抜)
¥2,126.496
(税込)
個 | 単価 | 購入単位毎合計* |
90 - 90 | ¥1,933.178 | ¥173,986.02 |
180 - 810 | ¥1,894.511 | ¥170,505.99 |
900 - 1260 | ¥1,856.622 | ¥167,095.98 |
1350 - 1710 | ¥1,819.489 | ¥163,754.01 |
1800 + | ¥1,783.10 | ¥160,479.00 |
* 購入単位ごとの価格 |
- RS品番:
- 189-3852
- メーカー型番:
- STM32F415VGT6
- メーカー/ブランド名:
- STMicroelectronics
データシート
その他
詳細情報
The STM32F415xx and STM32F417xx family is based on the high-performance ARM®Cortex®-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The STM32F415xx and STM32F417xx family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix. All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG), and a cryptographic acceleration cell. They also feature standard and advanced communication interfaces.
受注確定後にお客様専用製品として商品化されるため、発注後のキャンセル・返品はお受けできません。
仕様
特性 | |
---|---|
ファミリー名 | STM32F4 |
パッケージタイプ | LQFP |
実装タイプ | 表面実装 |
ピン数 | 100 |
デバイスコア | ARM Cortex M4 |
データバス幅 | 32bit |
プログラムメモリサイズ | 1.024 MB |
最大周波数 | 168MHz |
RAMサイズ | 192 kB |
USBチャンネル | 2 |
SPIチャンネル数 | 3 |
CANチャンネル数 | 2 |
USARTチャネルの数 | 4 |
標準動作供給電圧 | 1.8 → 3.6 V |
I2Cチャンネル数 | 3 |
UARTチャンネル数 | 2 |
ADC数 | 16 x 12 bit |
動作温度 Max | +85 °C |
長さ | 14.2mm |
プログラムメモリタイプ | フラッシュ |
ADCユニット数 | 3 |
寸法 | 14.2 x 14.2 x 1.45mm |
動作温度 Min | -40 °C |
インストラクションセットアーキテクチャ | RISC |
幅 | 14.2mm |
高さ | 1.45mm |
